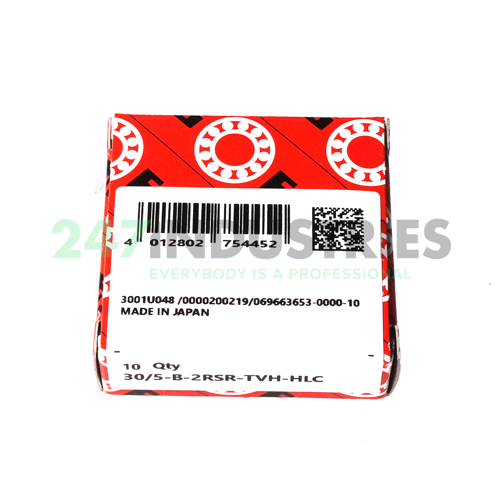

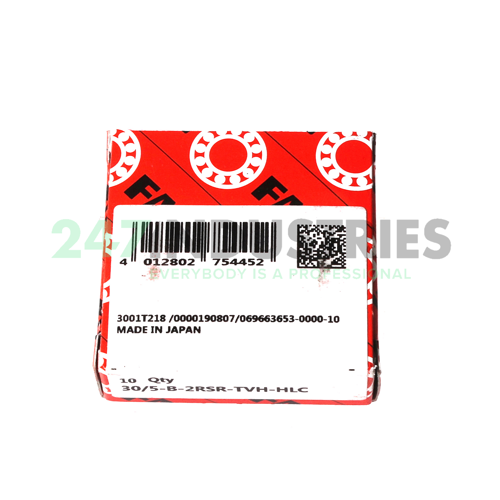

30/5-B-2RSR-TVH-HLC FAG

Double row angular contact ball bearing

Stock
1,301 pcs in stock and ready for shipment
Brand FAG
Article number 30/5-B-2RSR-TVH-HLC FAG
Inside diameter 5,00mm
Outside diameter 14,00mm
Width 7,00mm
Product description

The 30/5-B-2RSR-TVH-HLC FAG is a double row angular contact ball bearing with solid inner- and outer rings. The design of this bearing type resembles two single row angular contact ball bearings in O-arrangement but is slightly narrower. Also, the contact angle and the design of the bearing rings are different. double row angular contact ball bearings can support high radial forces and axial forces in both directions. The greater the contact angle, the greater the axial load capacity of the bearing.

Read more Show less
Help with this product

Downloads and links

Similar to: 30/5-B-2RSR-TVH-HLC FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 5,00
  2. Outer (D) MM 14,00
  3. Width (B) MM 7,00
  4. Inner (d) Inch 0.1969
  5. Outer (D) Inch 0.5512
  6. Width (B) Inch 0.2756
  7. Width (b) mm 7,00

Suffix description

  1. B Internal Design Modification
  2. 2RSR Seal At Each Side Of The Bearing
  3. TVH Moulded Polyamide Cage Snap-Type, Rolling Element Riding
  4. HLC Factory Location Code, No Additional Meaning, Can Be Used As Standard

Technical details

  1. Availability 1,301 pcs
  2. Brand FAG
  3. Item number 30/5-B-2RSR-TVH-HLC FAG
  4. Also known as 0696636530000
  5. EAN 4012802754094
  6. Category Angular Contact Ball Bearing Double Row

Weight and Dimensions

  1. Weight (kg) 0.008

Product Properties

  1. Bore C - Cylindrical Bore
  2. Seal 2RS - Rubber Seal on Two Sides
  3. Cage Type P - Plastic Molded Cage
  4. External Modification No External Modification
  5. Radial Internal Play Cn Normal Internal Play
  6. Precision Standard Precision
  7. Lubrication Standard Lubrication
  8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  9. Split Inner ring / Outer ring Standard

Data from Schaeffler (medias)

  1. Radial Static Load Rating C0r (N) 940
  2. Radial Dynamic Load Rating Cr (N) 1780
  3. Basic static load rating, radial (C 0r) "940.0000"
  4. Limiting speed (n G) "30500.0000"
  5. ECLASS number 23-05-08-03
  6. ECLASS2 number 23-05-08-03
  7. Medias description Angular contact ball bearings 30..-B-2RSR, double row, lip seals on both sides, contact angle a = 25°
