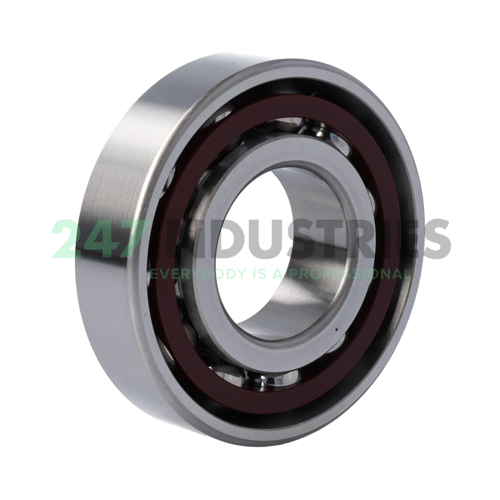

2MM308WI CR Fafnir

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. WI Low Shoulder On Outer Ring
2. CR Phenolic Retainer (Composition) Fafnir Standard

Technical details

1. Availability 0 pcs
2. Brand Fafnir
3. Item number 2MM308WI CR Fafnir
4. Also known as 7308CD/P4A

5. Category Angular Contact Ball Bearing Single Row

Weight and Dimensions

1. Weight (kg) 0.61

Product Properties

1. Seal No Seal
2. Cage Type TB - Hard Fiber Cage
3. Precision P4 Precision (Higher than P5)
4. Contact Angle 15 degrees
5. Pairing No pairing
6. Axial Internal Clearance / Preload No Preload
7. Lubrication Standard Lubrication
