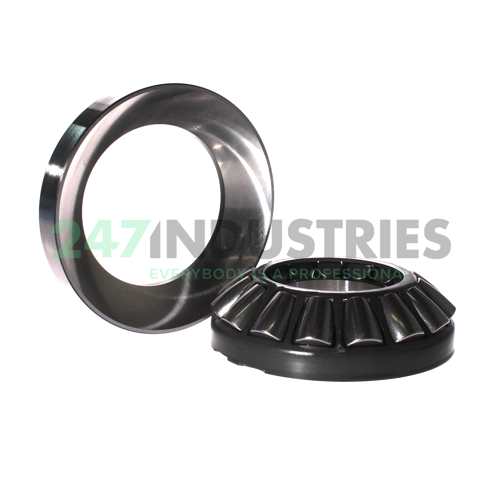

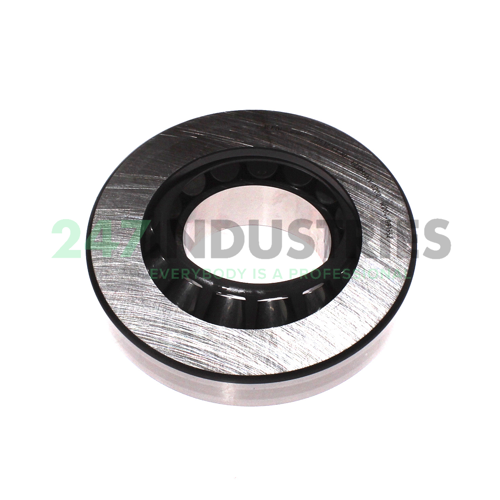

29412-E1-XL FAG

All dimensions

1. Inner (d) MM 60,00
2. Outer (D) MM 130,00
3. Width (B) MM 42,00
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.6535
7. Height (T) mm 42,00

Suffix description

1. E1 Increased Capacity Design
2. XL X-Life

Technical details

1. Availability 28 pcs
2. Brand FAG
3. Item number 29412-E1-XL FAG
4. Also known as 0390002730000
   29412-E1

5. EAN 4012802190380
6. Category Spherical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 2.23

Product Properties

1. Cage Type S - Steel or Standard Cage

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "410000.0000"
2. Axial Static Load Rating C0a (N) 940000
3. Basic static load rating, axial (C 0a) "940000.0000"
4. Axial Dynamic Load Rating Ca (N) 410000
5. Limiting speed (n G) "6000.0000"
6. Reference speed (n ϑr) "2850.0000"
7. ECLASS number 23-05-11-03
8. ECLASS2 number 23-05-11-03
9. Medias description Axial spherical roller bearing 294..-E1-XL, no flanging ring

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
