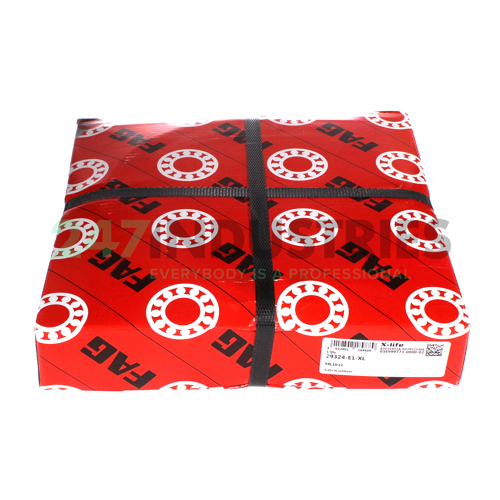

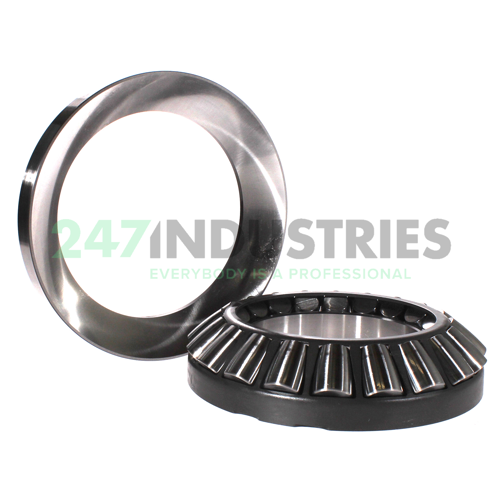

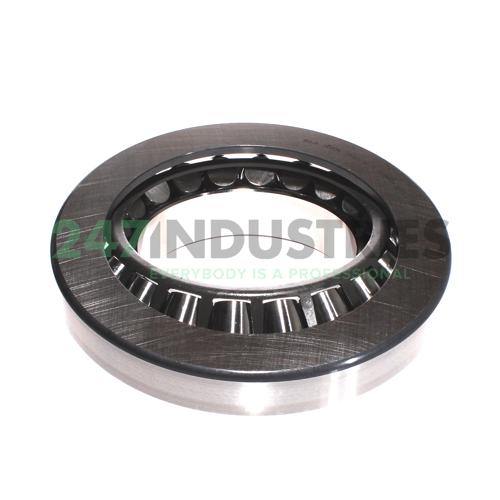

29324-E1-XL FAG

All dimensions

1. Inner (d) MM 120,00
2. Outer (D) MM 210,00
3. Width (B) MM 54,00
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 8.2677
6. Width (B) Inch 2.1260
7. Height (T) mm 54,00

Suffix description

1. E1 Increased Capacity Design
2. XL X-Life

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number 29324-E1-XL FAG
4. Also known as 0389997730000
   29324-E1

5. EAN 4012802189889
6. Category Spherical Roller Thrust Bearing

Weight and Dimensions

1. Weight (kg) 6.89

Product Properties

1. Cage Type S - Steel or Standard Cage

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "800000.0000"
2. Axial Static Load Rating C0a (N) 2210000
3. Basic static load rating, axial (C 0a) "2210000.0000"
4. Axial Dynamic Load Rating Ca (N) 800000
5. Limiting speed (n G) "3350.0000"
6. Reference speed (n ϑr) "1700.0000"
7. ECLASS number 23-05-11-03
8. ECLASS2 number 23-05-11-03
9. Medias description Axial spherical roller bearing 293..-E1-XL, no flanging ring
