24032-BE-K30-C4 FAG

Spherical roller bearing

Stock
not in stock
Brand FAG
Article number 24032-BE-K30-C4 FAG
Inside diameter 160mm
Outside diameter 240mm
Width 80mm
Product description

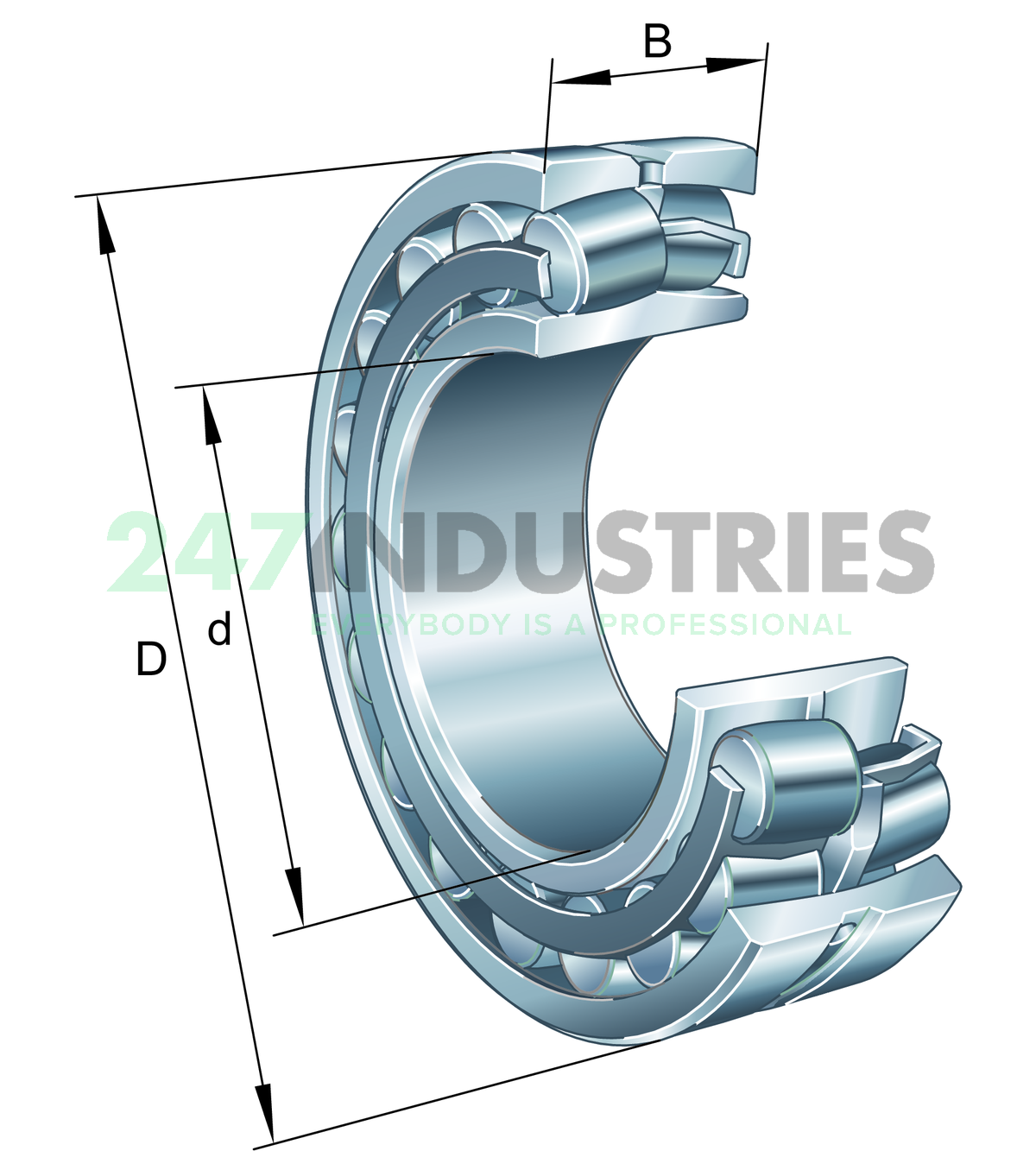

The 24032-BE-K30-C4 FAG is a spherical roller bearing. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

Help with this product

Downloads and links

Similar to: 24032-BE-K30-C4 FAG

Loading similair products

Product specifications

All dimensions

  1. Inner (d) MM 160
  2. Outer (D) MM 240
  3. Width (B) MM 80
  4. Inner (d) Inch 6.2992
  5. Outer (D) Inch 9.4488
  6. Width (B) Inch 3.1496

Suffix description

  1. BE Maximum Capacity Design
  2. K30 Tapered Bore, Taper 1:30
  3. C4 Bearing Internal Clearance Greater Than C3

Technical details

  1. Availability 0 pcs
  2. Brand FAG
  3. Item number 24032-BE-K30-C4 FAG
  4. Category Spherical Roller Bearing

Weight and Dimensions

  1. Weight (kg) 12

Product Properties

  1. Bore K3 – 1:30 Tapered Bore
  2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
  3. Seal No Seal
  4. Cage Type S - Steel or Standard Cage
  5. Radial Internal Play C4 Internal Play (Higher than C3)
  6. Precision Standard Precision
  7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
  8. Vibrating Screen Execution Non Vibrating Screen Execution

Downloads and links

  1. Link to manufacturer Link to manufacturer
