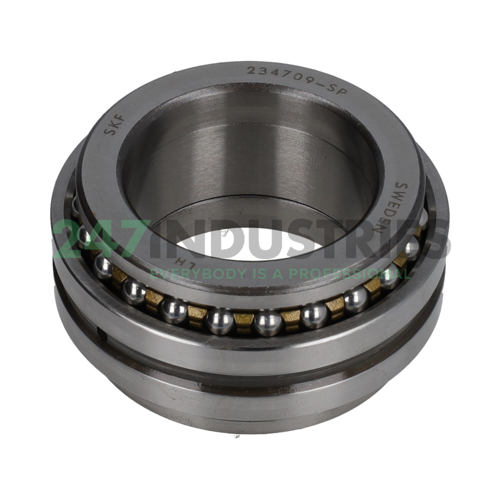

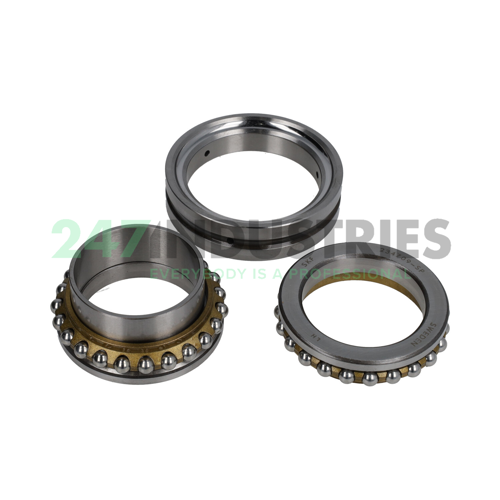

234709BM/SP SKF

All dimensions

1. Inner (d) MM 47
2. Outer (D) MM 75
3. Width (B) MM 38
4. Inner (d) Inch 1.8504
5. Outer (D) Inch 2.9528
6. Width (B) Inch 1.4961

Suffix description

1. B 40° Contact Angle
2. M Machined Brass Cage Which Is Centered On The Shaft Washer Or The Housing Washer
3. SP Special Precision Class For Machine Tool Bearings: Dimensional Accuracy Approximately To P5, Running Accuracy Approximately To P4

Technical details

1. Availability 6 pcs
2. Brand SKF
3. Item number 234709BM/SP SKF
4. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.57

Product Properties

1. Cage Type M - Brass Cage
2. Precision SP - Precision Higher than P4S
