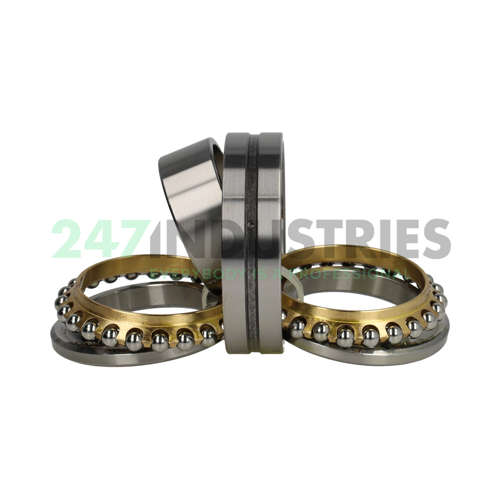

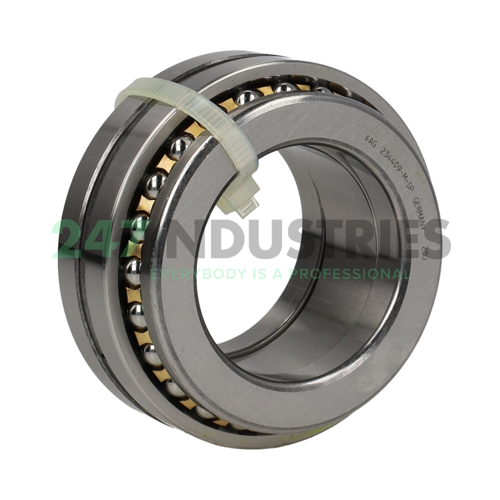

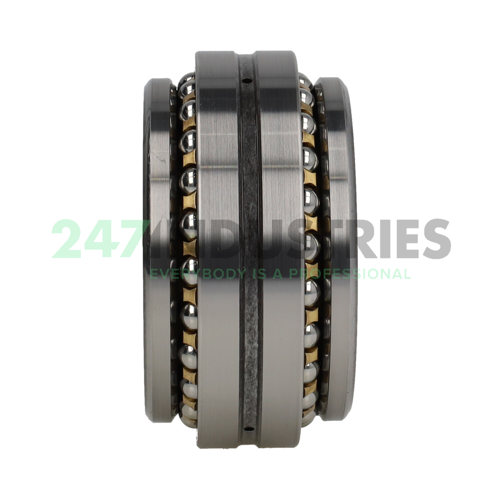

234409-M-SP FAG

All dimensions

1. Inner (d) MM 45,00
2. Outer (D) MM 75,00
3. Width (B) MM 38,00
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 2.9528
6. Width (B) Inch 1.4961
7. Width (b) mm 38,00

Suffix description

1. M Solid Brass Cage, Ball-Guided
2. SP Super Precision Specification, Tolerance Class SP, Radial Clearance C1

Technical details

1. Availability 2 pcs
2. Brand FAG
3. Item number 234409-M-SP FAG
4. Also known as 0190387710000

5. EAN 4012801016582
6. Category Angular Contact Thrust Ball Bearings, Double Direction

Weight and Dimensions

1. Weight (kg) 0.58

Product Properties

1. Cage Type M - Brass Cage
2. Precision SP - Precision Higher than P4S

Data from Schaeffler (medias)

1. Basic dynamic load rating, axial (C a) "25000.0000"
2. Axial Static Load Rating C0a (N) 67000
3. Basic static load rating, axial (C 0a) "67000.0000"
4. Axial Dynamic Load Rating Ca (N) 25000
5. Limiting speed for grease lubrication (n G Grease) "7500.0000"
6. Limiting speed for oil lubrication (n G Oil) "10000.0000"
7. ECLASS number 23-05-10-02
8. ECLASS2 number 23-05-10-02
9. Medias description Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
