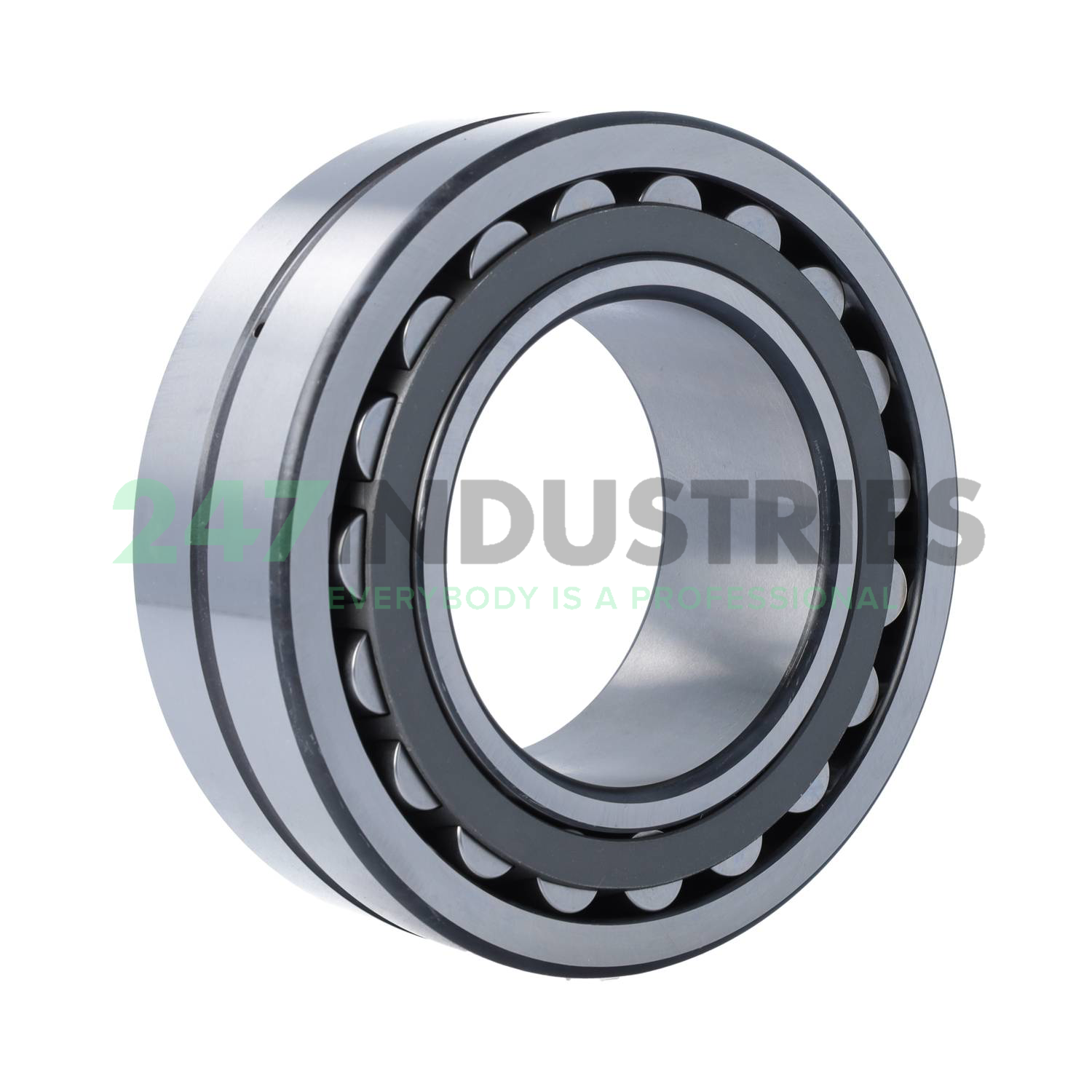

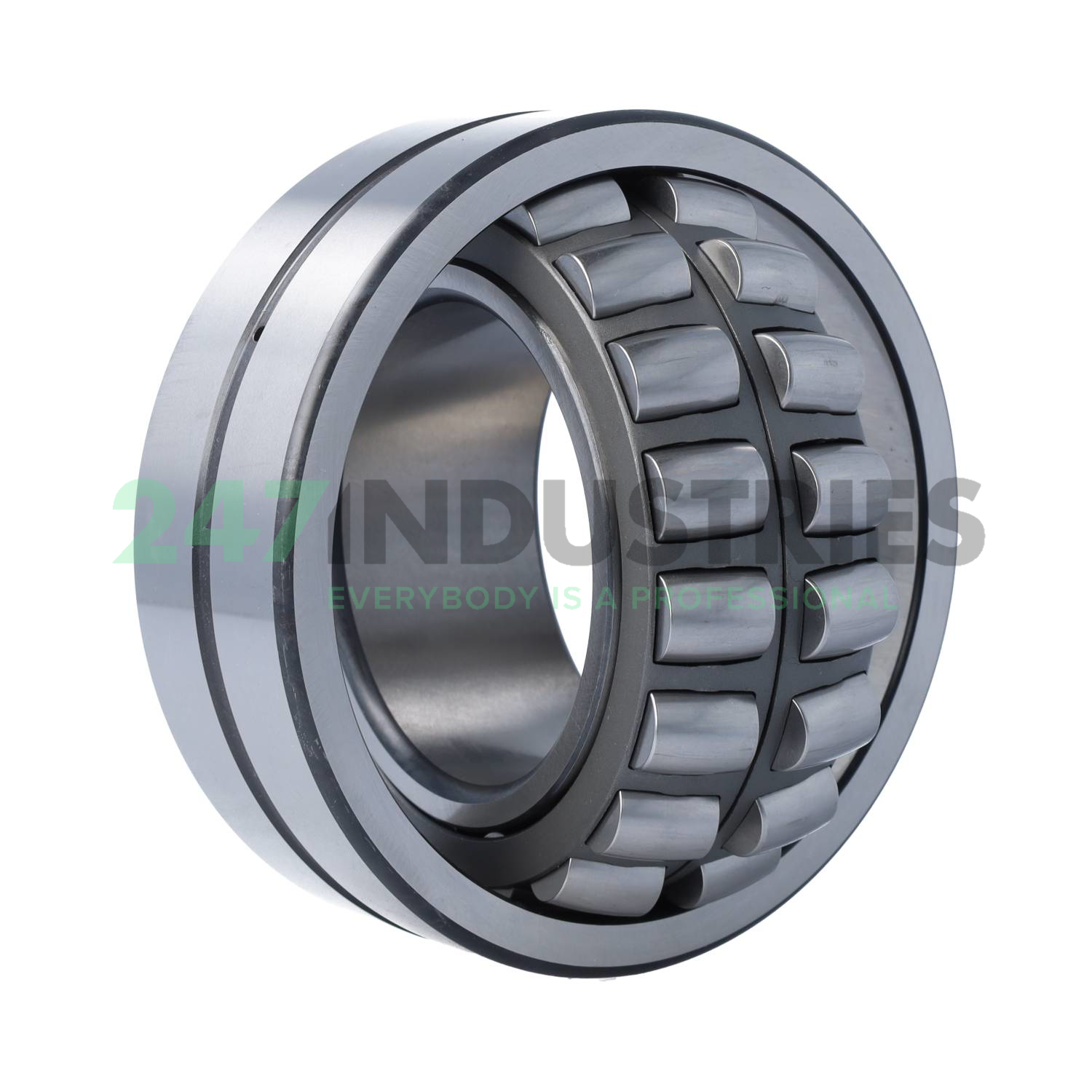

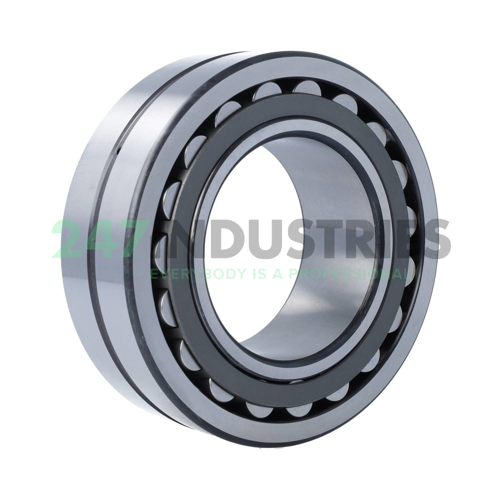

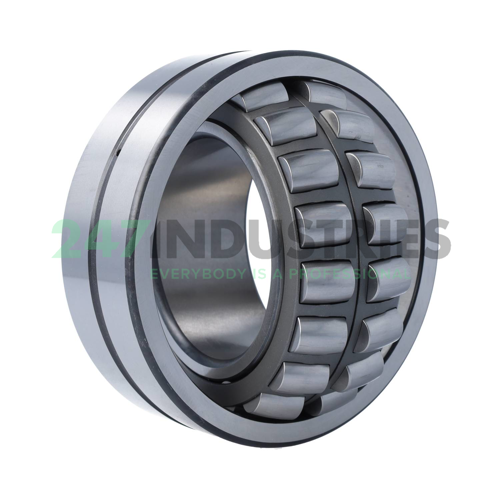

23218E W33 J ZVL

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 160
3. Width (B) MM 52,4
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 2.063

Suffix description

1. E Double Row Spherical Roller Bearing With Higher Load Rating
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
3. J Pressed Sheet Steel Cage Guided On The Outer Diameter (M Profile)

Technical details

1. Availability 4 pcs
2. Brand ZVL
3. Item number 23218E W33 J ZVL
4. Also known as 23218CC/W33
   23218EJW33

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4.4702

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
