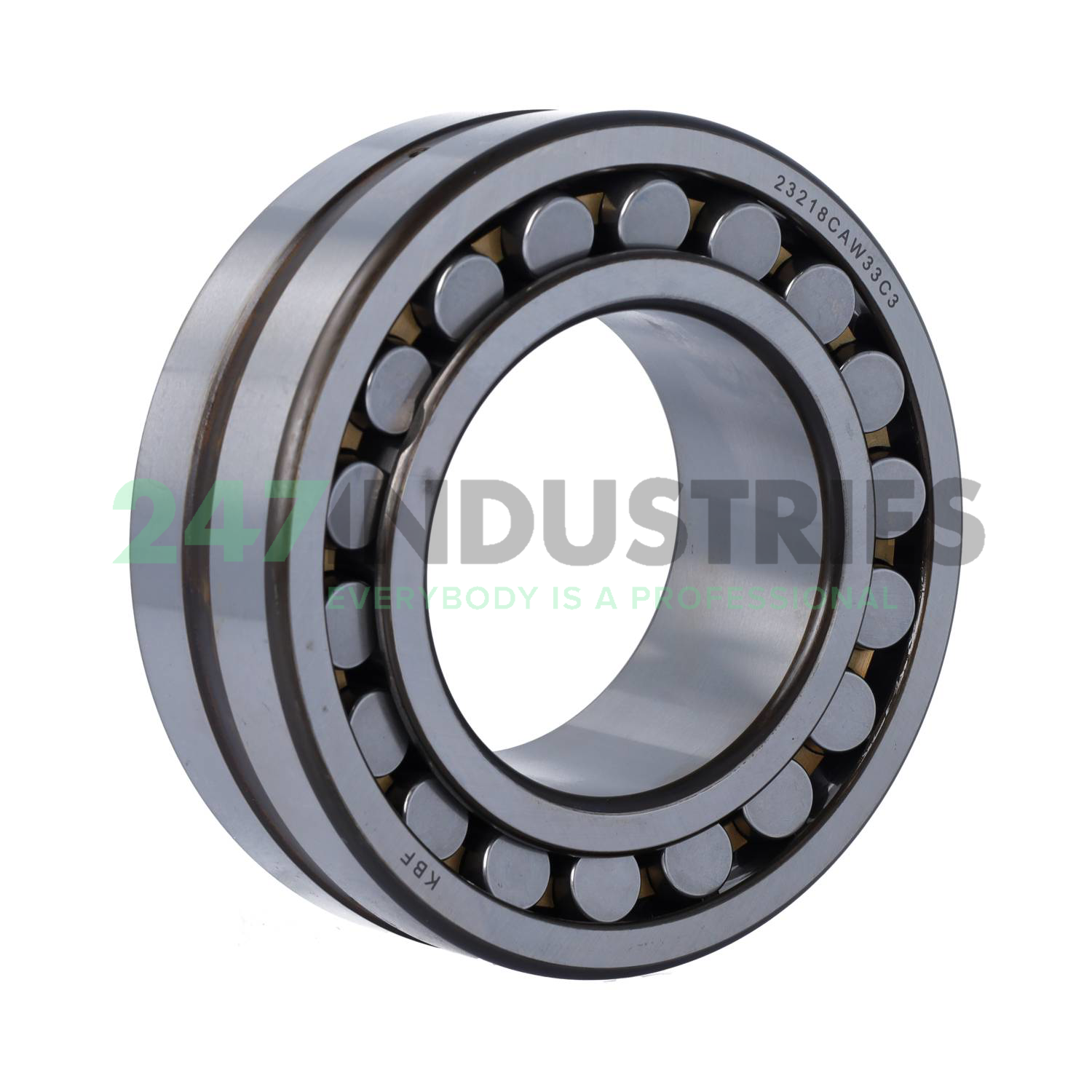

23218CA W33 C3 Neutral

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 160
3. Width (B) MM 52,4
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 2.063

Suffix description

1. CA Brass Cage With Symmetrical Rollers
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand Neutral
3. Item number 23218CA W33 C3 Neutral
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4.46

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
