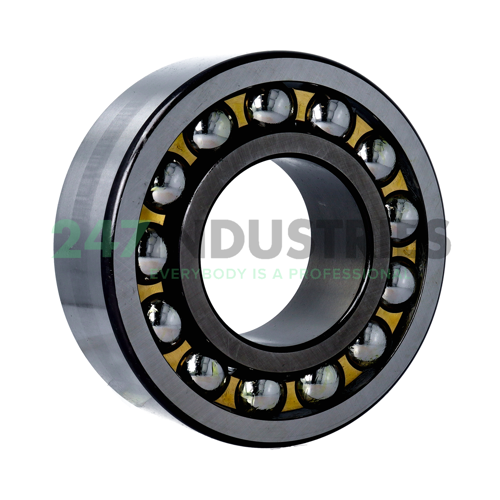

2318-K-M FAG

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 190
3. Width (B) MM 64
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 7.4803
6. Width (B) Inch 2.5197
7. Width (b) mm 64

Suffix description

1. K Tapered Bore, Taper 1:12
2. M Solid Brass Cage

Technical details

1. Availability 7 pcs
2. Brand FAG
3. Item number 2318-K-M FAG
4. Also known as 0384739170000

5. EAN 4026677247056
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 8.44

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type M - Brass Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 58000
2. Limiting speed (n G) 5100
3. Reference speed (n ϑr) 5000
