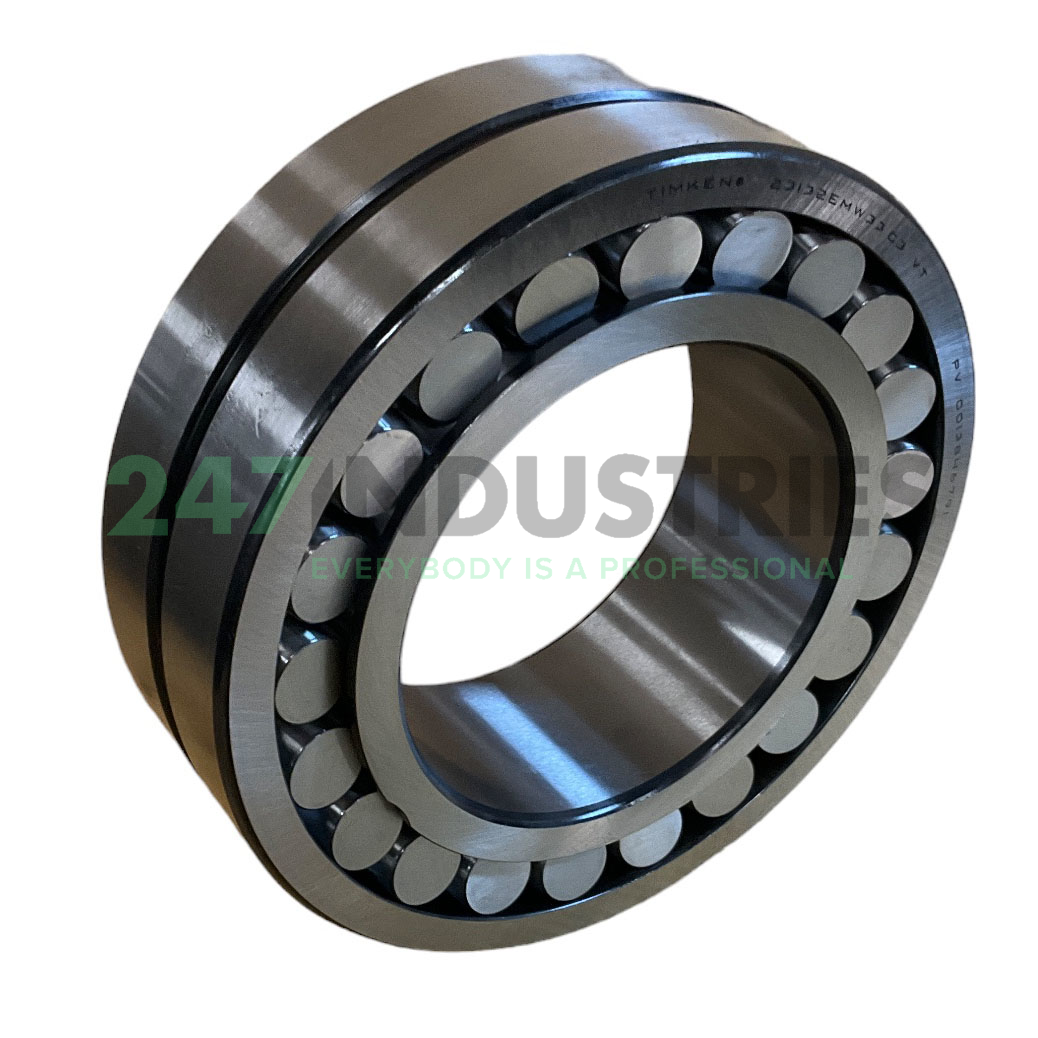

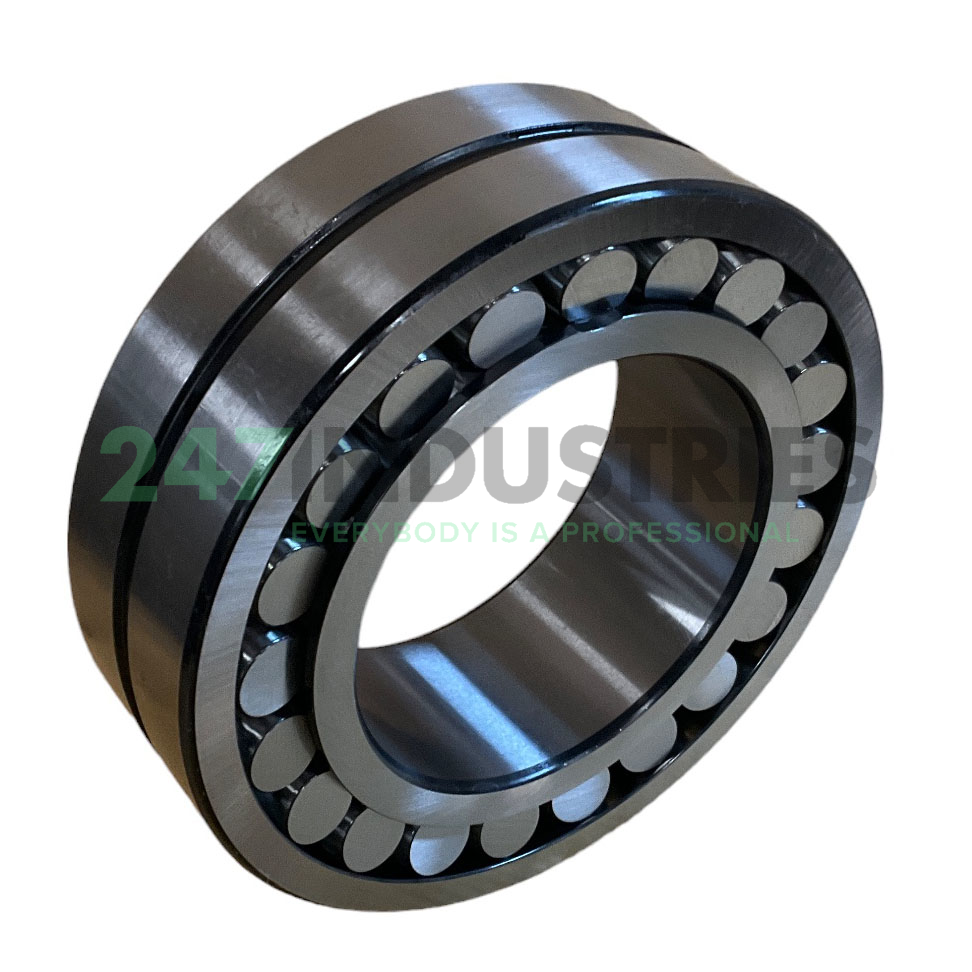

23132EMW33C3 Timken

All dimensions

1. Inner (d) MM 160,00
2. Outer (D) MM 270,00
3. Width (B) MM 86,00
4. Inner (d) Inch 6.2992
5. Outer (D) Inch 10.6299
6. Width (B) Inch 3.3858

Suffix description

1. E Increased Load Capacity
2. M Machined Brass Cage, Located On The Rolling Elements
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand Timken
3. Item number 23132EMW33C3 Timken
4. Also known as 190025504

5. EAN 0087796024687
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 20

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
