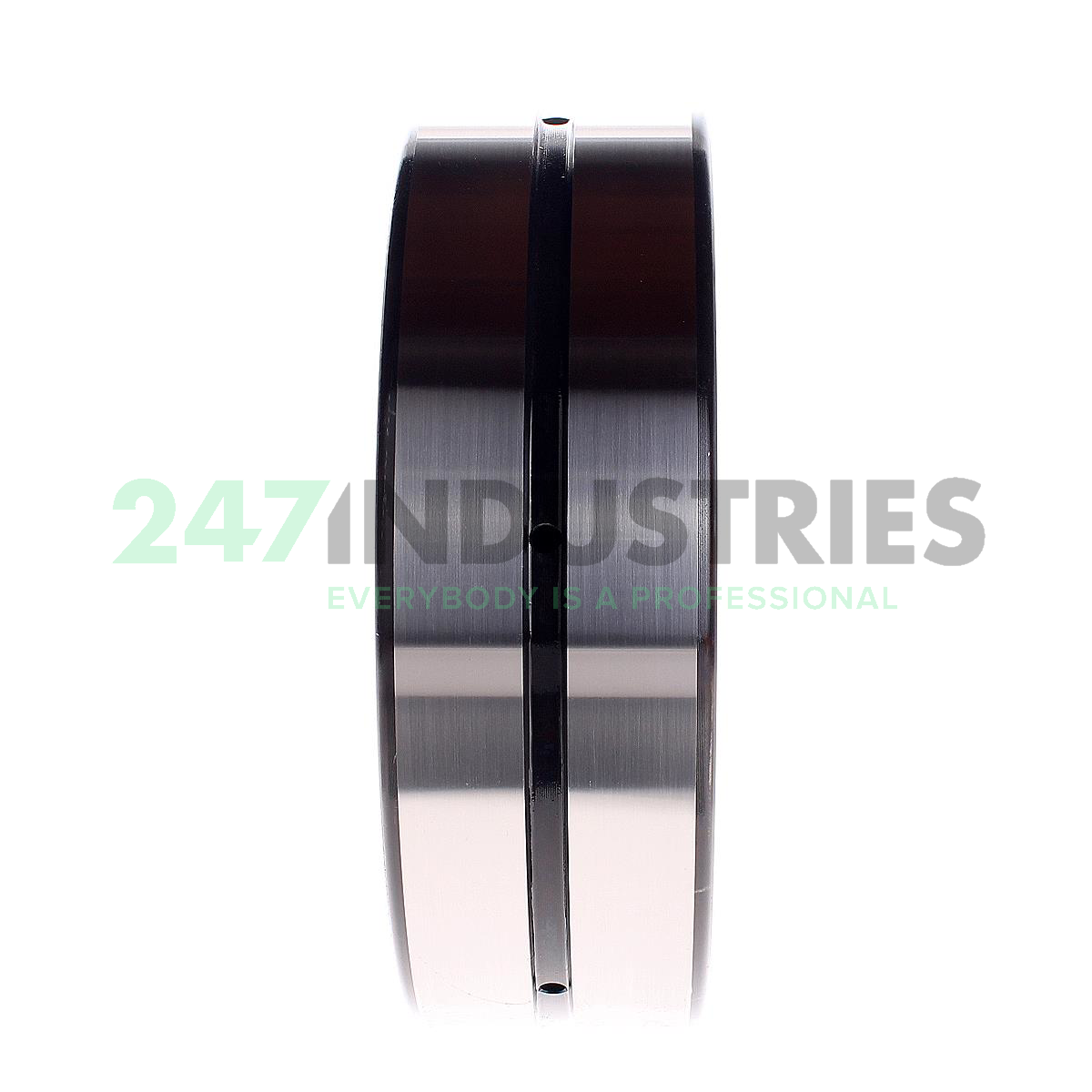

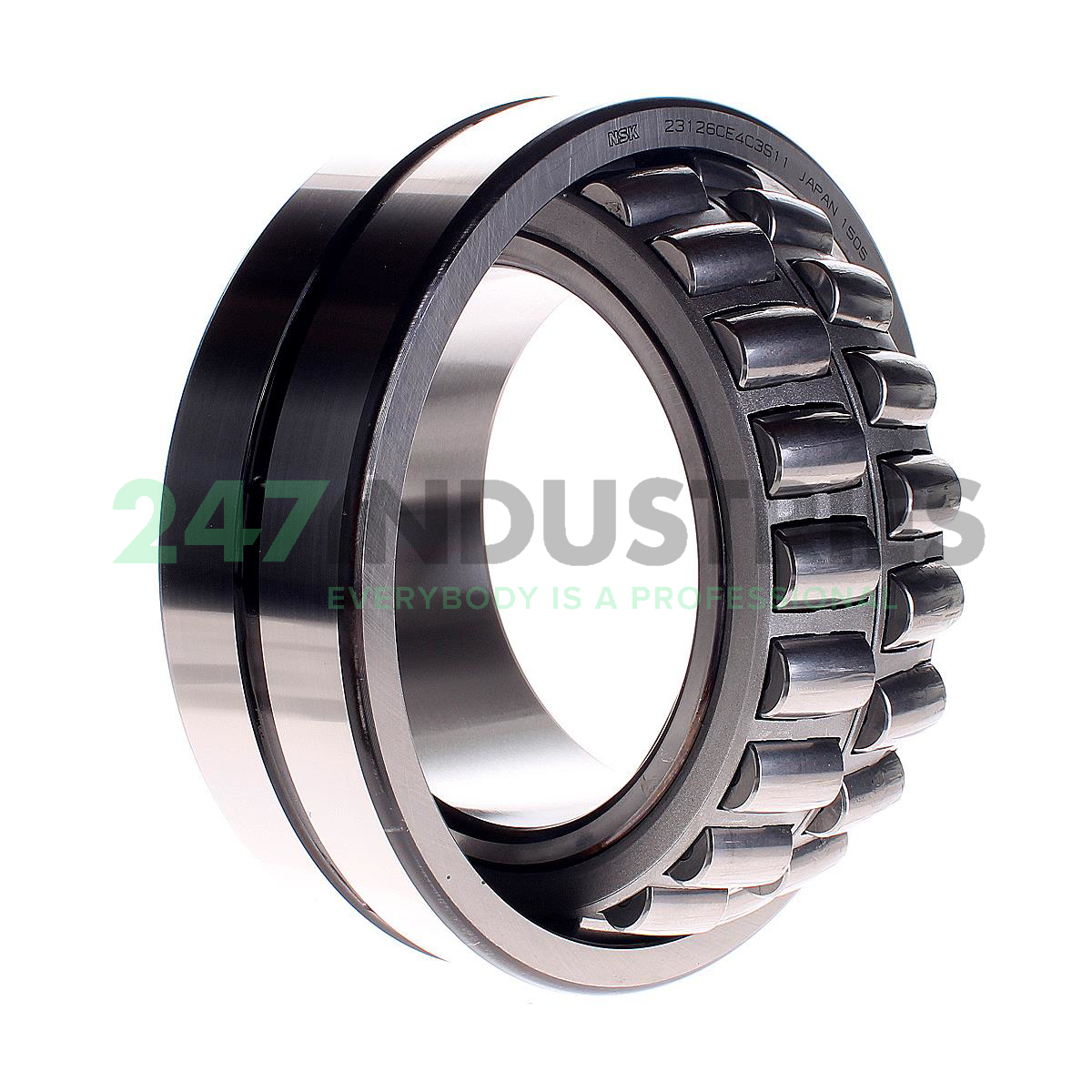

23126CE4C3S11 NSK

All dimensions

1. Inner (d) MM 130
2. Outer (D) MM 210
3. Width (B) MM 64
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 8.2677
6. Width (B) Inch 2.5197

Suffix description

1. C Two-Piece Pressed Steel Cage With Guide Ring
2. E4 Lubrication Groove And Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal
4. S11 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 3 pcs
2. Brand NSK
3. Item number 23126CE4C3S11 NSK
4. Also known as 23126CC/C3W33
   23126CE4C3
   23126EAS.C3

5. EAN 00029176025501
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 8.11

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
