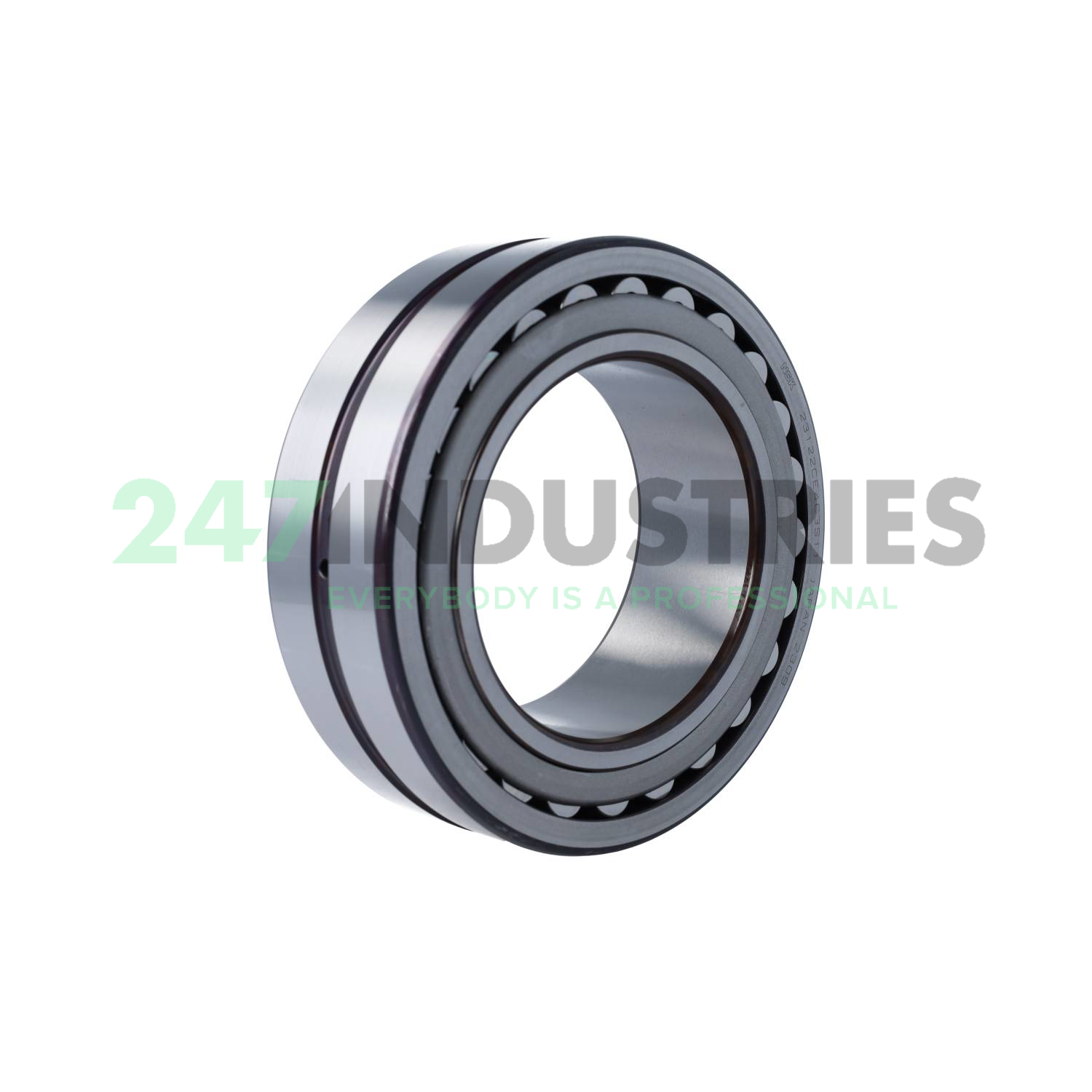

23122HLS C3 CBF

All dimensions

1. Inner (d) MM 110,00
2. Outer (D) MM 180,00
3. Width (B) MM 56,00
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.0866
6. Width (B) Inch 2.2047

Suffix description

1. HL Spherical Roller Bearing With Increased Load Capacity
2. S Lubrication Groove And Three Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand CBF
3. Item number 23122HLS C3 CBF
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 5.31

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
