23122CK RIV

All dimensions

1. Inner (d) MM 110,00
2. Outer (D) MM 180,00
3. Width (B) MM 56,00
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.0866
6. Width (B) Inch 2.2047

Suffix description

1. C Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Ring Centered On The Inner Ring
2. K Tapered Bore, Taper 1:12

Technical details

1. Availability 0 pcs
2. Brand RIV
3. Item number 23122CK RIV

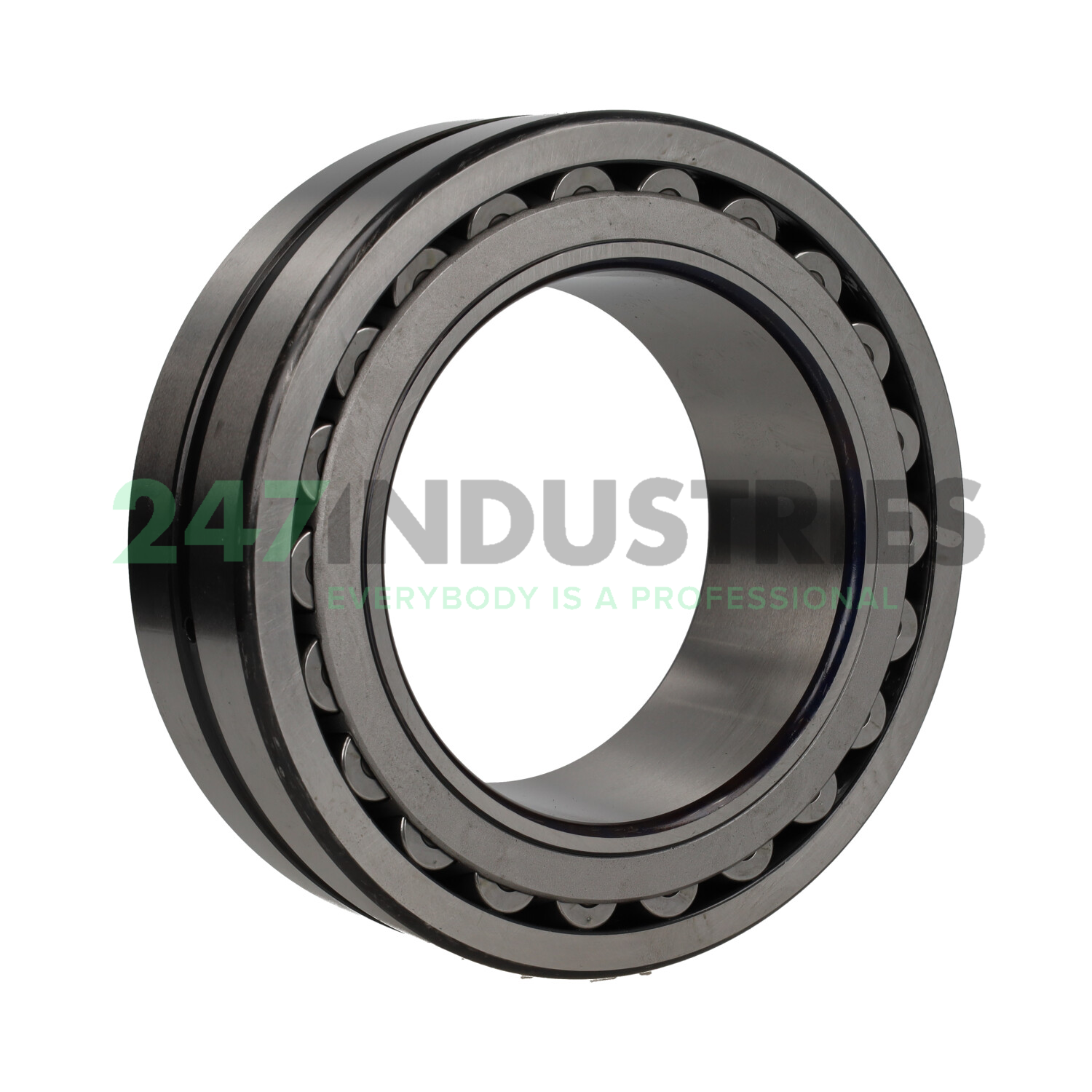

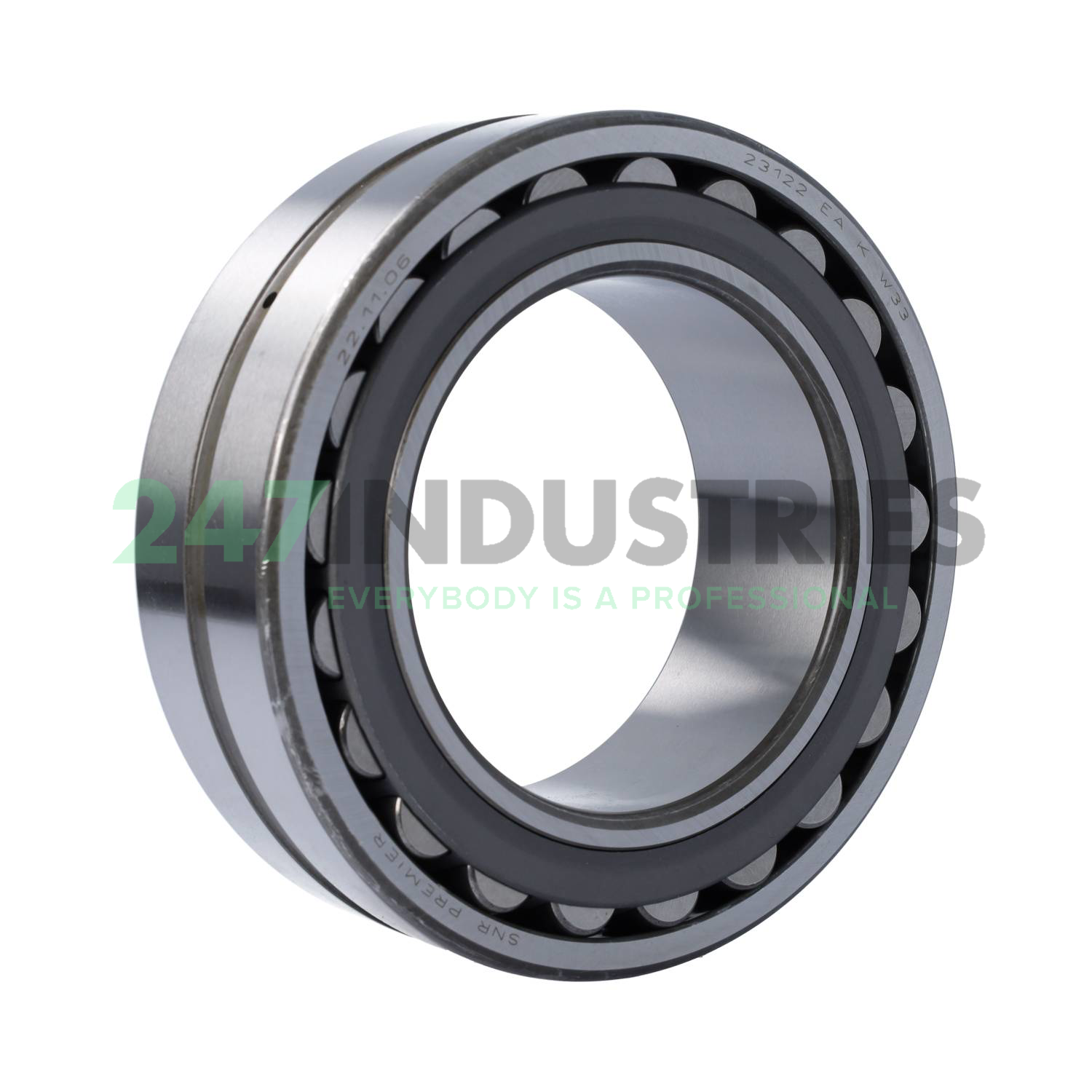

4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 5.33

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
