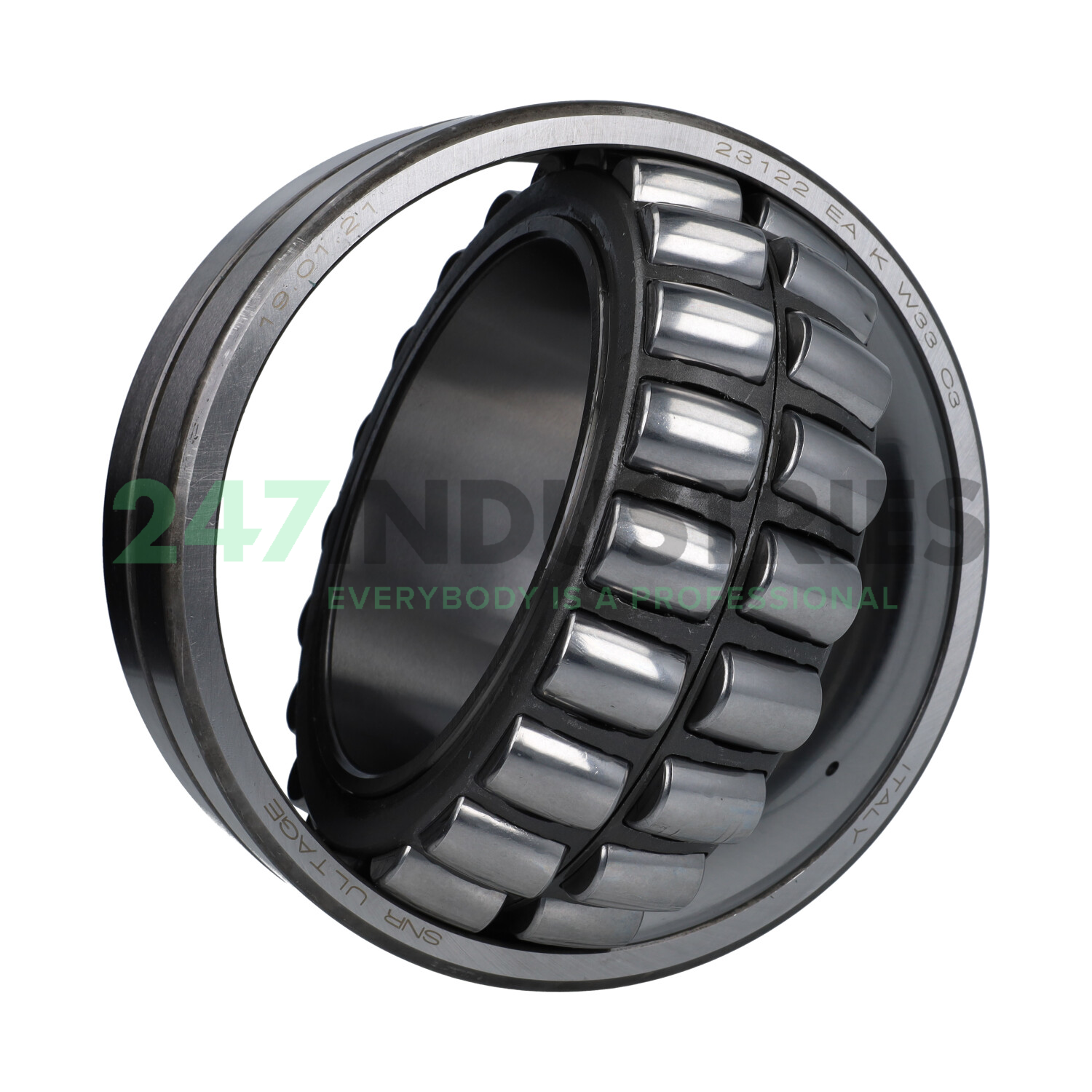

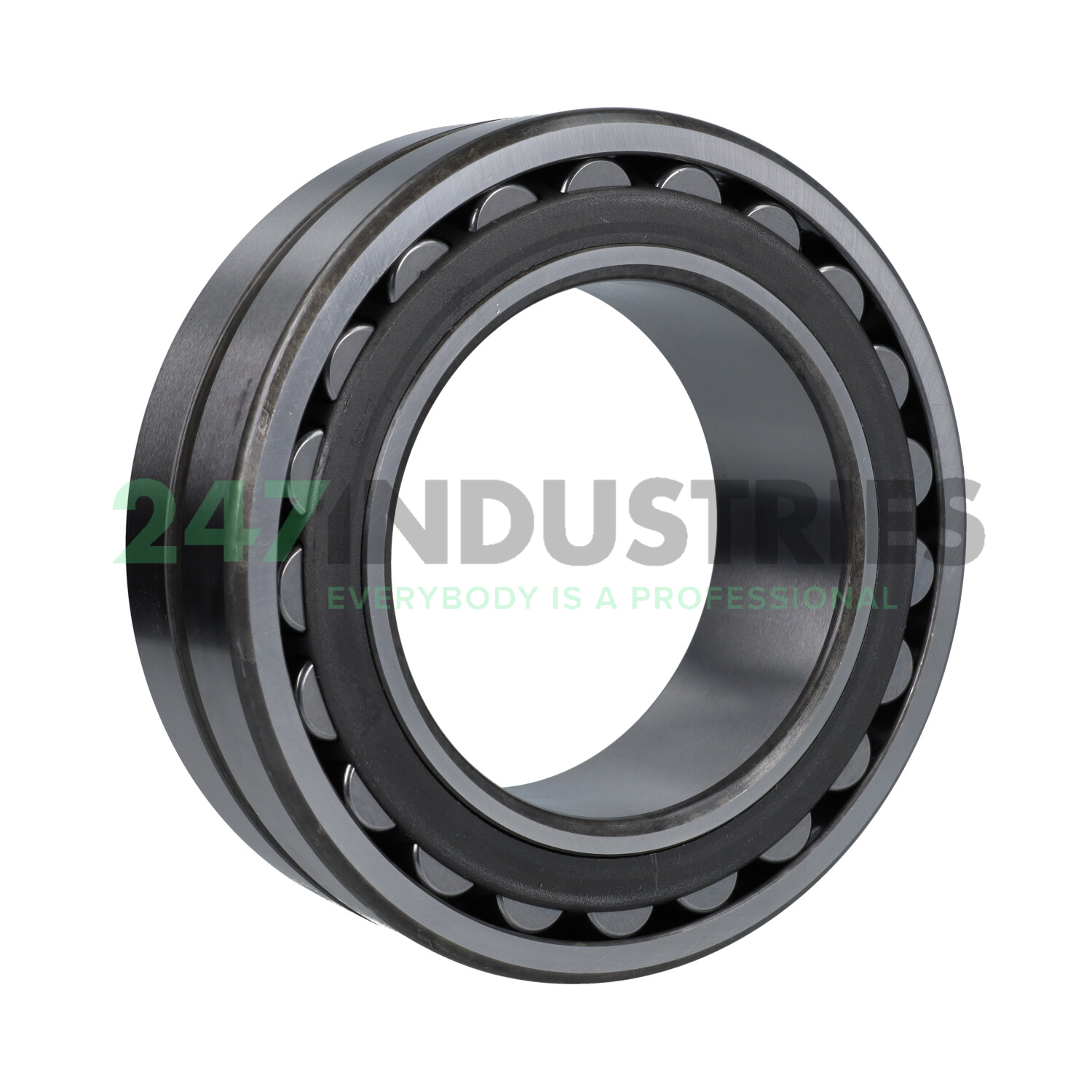

23122.EAKW33C3 SNR

All dimensions

1. Inner (d) MM 110
2. Outer (D) MM 180
3. Width (B) MM 56
4. Inner (d) Inch 4.3307
5. Outer (D) Inch 7.0866
6. Width (B) Inch 2.2047

Suffix description

1. EA Higher Capacity, Better Than Former Suffix E
2. K Tapered Bore, Taper 1:12
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 5 pcs
2. Brand SNR
3. Item number 23122.EAKW33C3 SNR
4. Also known as 23122CCK/C3W33
   23122KEJW33C3

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 5.13

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
