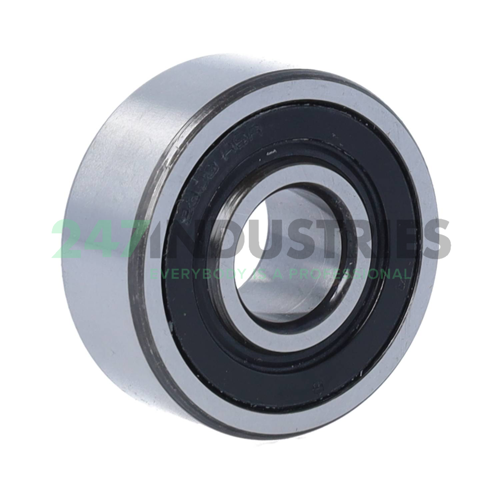

2303-2RSTN YRLN5 NSK

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 47
3. Width (B) MM 19
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.748

Suffix description

1. 2RS Rubber Seals At Each Side Of The Bearing
2. TN Cage Of Glass Fibre Reinforced Polyamide 6,6
3. YRL Lubricant, Operating Temperature -30 ~ 120°C
4. N Normal Filling 35%

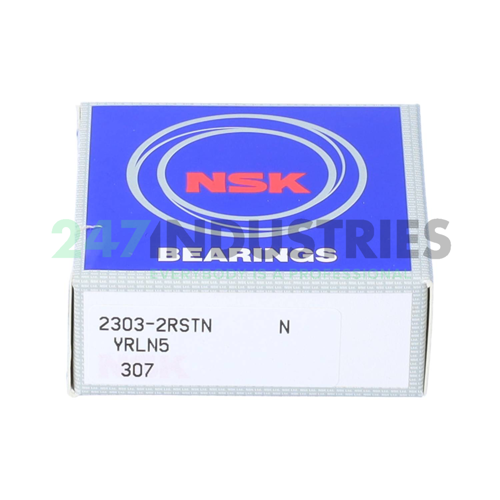

5. 5 Standard Single Pack. Bearings In Polythene Bags Or Hizex Film Are Placed In Individual Cardboard Boxes. The Individual Boxes Are Then Placed In A Cardboard Outer Carton And Polystrene Filled

Technical details

1. Availability 9 pcs
2. Brand NSK
3. Item number 2303-2RSTN YRLN5 NSK
4. Also known as 2303-2RSTN
   2303-2RS-TVH
   2303E-2RS1TN9

5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.158

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Higher and Lower Temperature Grease
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
