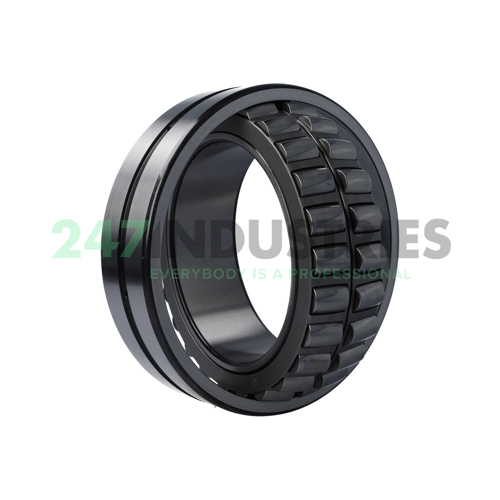

23026CDKE4S11 NSK

All dimensions

1. Inner (d) MM 130
2. Outer (D) MM 200
3. Width (B) MM 52
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 7.874
6. Width (B) Inch 2.0472

Suffix description

1. CD Spherical Roller Bearing, Two-Piece Pressed Steel Cage With Guide Ring
2. K Tapered Bore, Taper 1:12
3. E4 Lubrication Groove And Holes In Bearing Outer Ring
4. S11 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 3 pcs
2. Brand NSK
3. Item number 23026CDKE4S11 NSK
4. Also known as 23026CCK/W33
   23026CDKE4
   23026KEJW33

5. EAN 00029176027390
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 5.574

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
