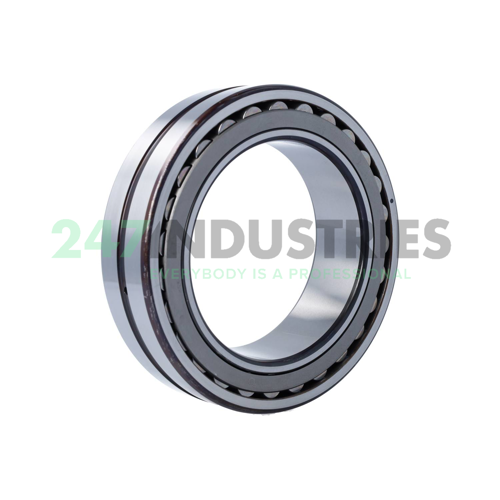

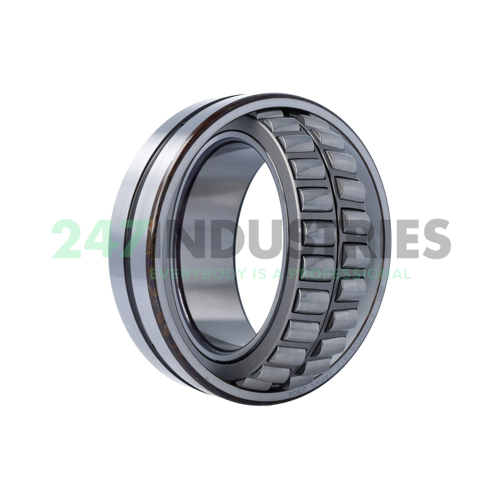

23024CD E4 S11 NSK

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 180
3. Width (B) MM 46
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.811

Suffix description

1. CD Spherical Roller Bearing, Two-Piece Pressed Steel Cage With Guide Ring
2. E4 Lubrication Groove And Holes In Bearing Outer Ring
3. S11 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 0 pcs
2. Brand NSK
3. Item number 23024CD E4 S11 NSK
4. Also known as 23024CC/W33
   23024CD E4
   23024CJ
   23024CJ/W33
   23024E
   23024E1A
   23024EJ W33
   23024ES

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 3.973

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
