22315EK/C4 SKF

Name: 22315EK/C4 SKF
Brand: SKF

€ 234,74 ex VAT

€ 284,03 in VAT

€ 234,74 ex VAT

	Guaranteed same day shipment on orders placed before 18.00h (CET)
	This product is available from stock
	Worldwide shipping from the Netherlands
	30 days return policy
	Track your order through Track & Trace

22315EK/C4 SKF

Spherical roller bearing

Stock	2 pcs available for shipment on Wed 25 Mar
Brand	SKF
Article number	22315EK/C4 SKF

Product description

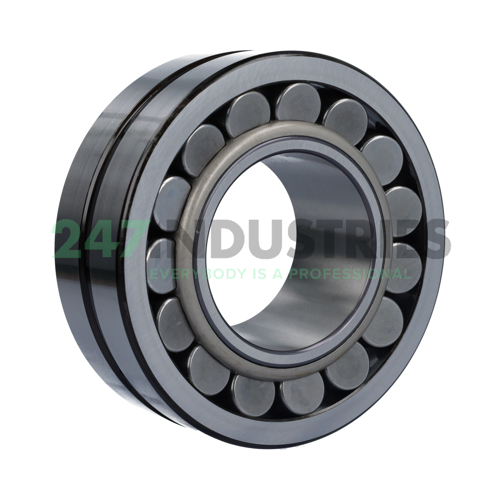

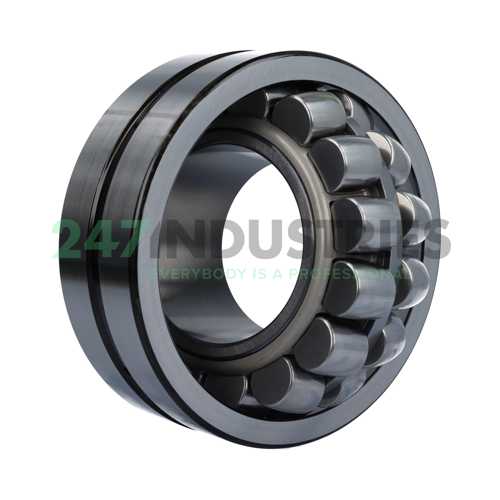

The 22315EK/C4 SKF is a spherical roller bearing with an open design. This bearing type has a solid inner ring, which runs on two rows of symmetrical rollers in a solid outer ring. The outer ring has a concave, spherical raceway. This design compensates for any alignment errors and shaft deflections. Spherical roller bearings can withstand particularly high radial loads. Additionally, they can accommodate axial forces in both directions. These bearings are used in elevators, textile machines, food processing machines, cranes etc.

Start a chat
Call us at: +31 (0)85 00 22 247
Email us at: help@247industries.com Response within 24h

Similar to: 22315EK/C4 SKF

Loading similair products

Product specifications

All dimensions

Inner (d) MM 75
Outer (D) MM 160
Width (B) MM 55
Inner (d) Inch 2.9528
Outer (D) Inch 6.2992
Width (B) Inch 2.1654

Suffix description

E d ≤65mm, Two Window-Type Steel Cages, Flangeless Inner Ring And Guide Centered On The Inner Ring. When d >65 mm Same As <65mm But Guide Ring Centered On The Cages
K Tapered Bore, Taper 1:12
C4 Bearing Internal Clearance Greater Than C3
