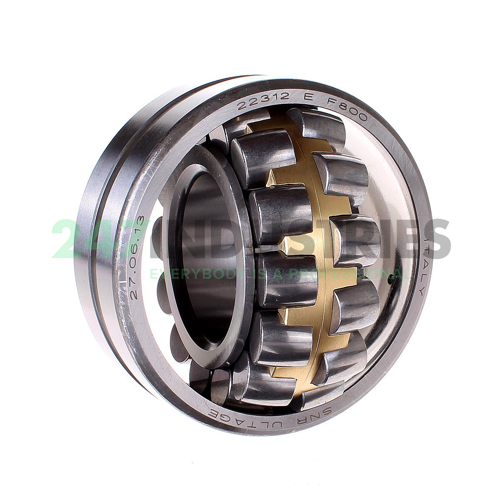

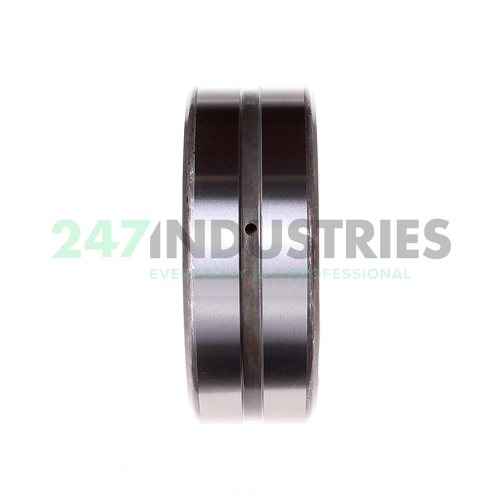

22312.E.F800 SNR

All dimensions

1. Inner (d) MM 60
2. Outer (D) MM 130
3. Width (B) MM 46
4. Inner (d) Inch 2.3622
5. Outer (D) Inch 5.1181
6. Width (B) Inch 1.811

Suffix description

1. EF800 The EF800 Range Of Double-row Spherical Roller Bearings With Machined Brass Cages Is Designed For The Kind Of "Extreme" Use Encountered With Crushers, Vibrating Screens And Grinders In Mines And Quarries

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 22312.E.F800 SNR
4. Also known as 22312E/VA405
   22312EAS.MA.T41A
   22312YM W33 W800 C4

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 2.9098

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Vibrating Screen Execution
