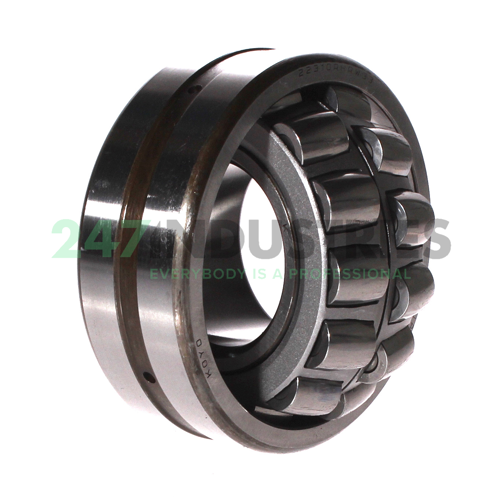

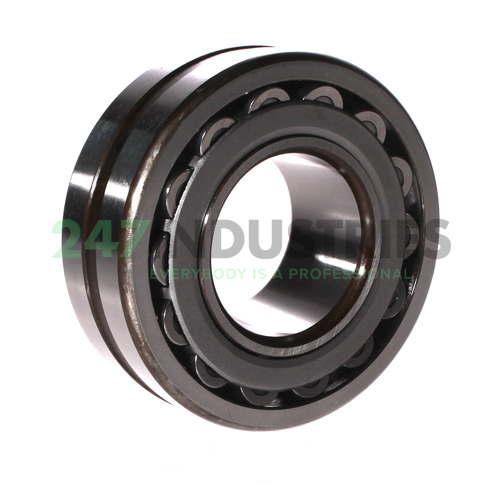

22310RHRK W33 Koyo (JTEKT)

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 110
3. Width (B) MM 40
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 4.3307
6. Width (B) Inch 1.5748

Suffix description

1. RHR As RHR-Type Spherical Roller Bearings Are Implemented Dimension Stabilizing Treatment And Steel Plate Cage Are Assembled, They Can Be Used Up To 200°C
2. K Tapered Bore, Taper 1:12

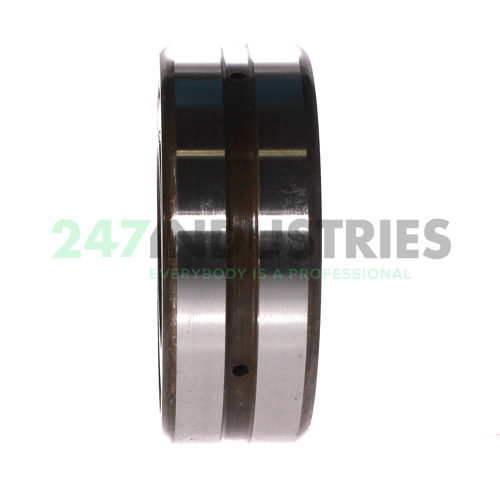

3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 0 pcs
2. Brand Koyo (JTEKT)
3. Item number 22310RHRK W33 Koyo (JTEKT)
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.7

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
