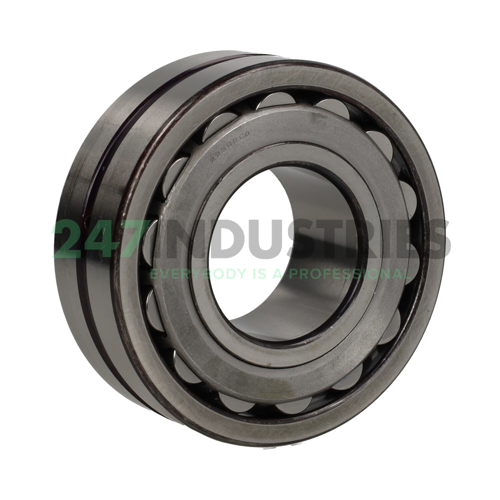

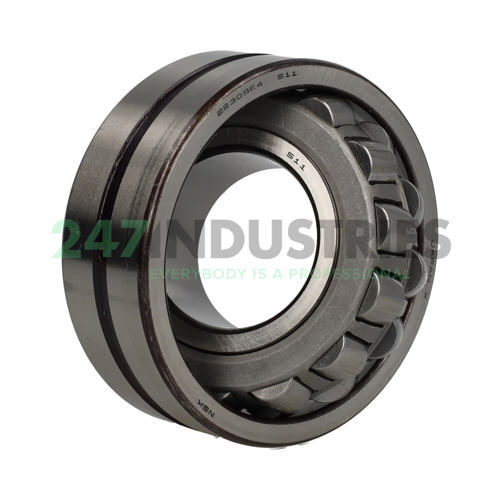

22309CDE4S11 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 36
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.4173

Suffix description

1. CD Spherical Roller Bearing, Two-Piece Pressed Steel Cage With Guide Ring
2. E4 Lubrication Groove And Holes In Bearing Outer Ring
3. S11 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 22309CDE4S11 NSK
4. Also known as 22309CC/W33
   22309CDE4
   22309E
   22309E1
   22309-E1
   22309-E1-XL
   22309-E1-XL>A
   22309ES

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
