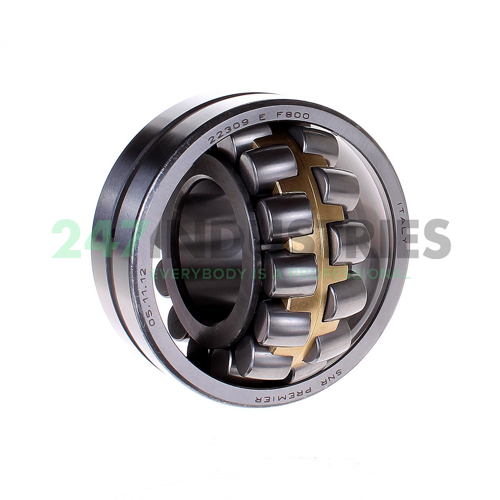

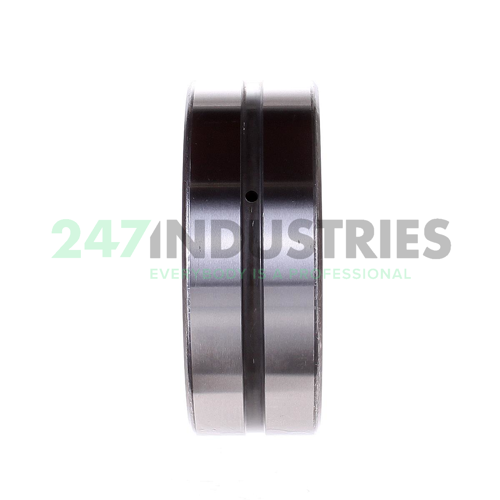

22309.E.F800 SNR

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 36
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 1.4173

Suffix description

1. EF800 The EF800 Range Of Double-row Spherical Roller Bearings With Machined Brass Cages Is Designed For The Kind Of "Extreme" Use Encountered With Crushers, Vibrating Screens And Grinders In Mines And Quarries

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 22309.E.F800 SNR
4. Also known as 22309E/VA405
   22309-E1-XL-T41A

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.3

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Vibrating Screen Execution
