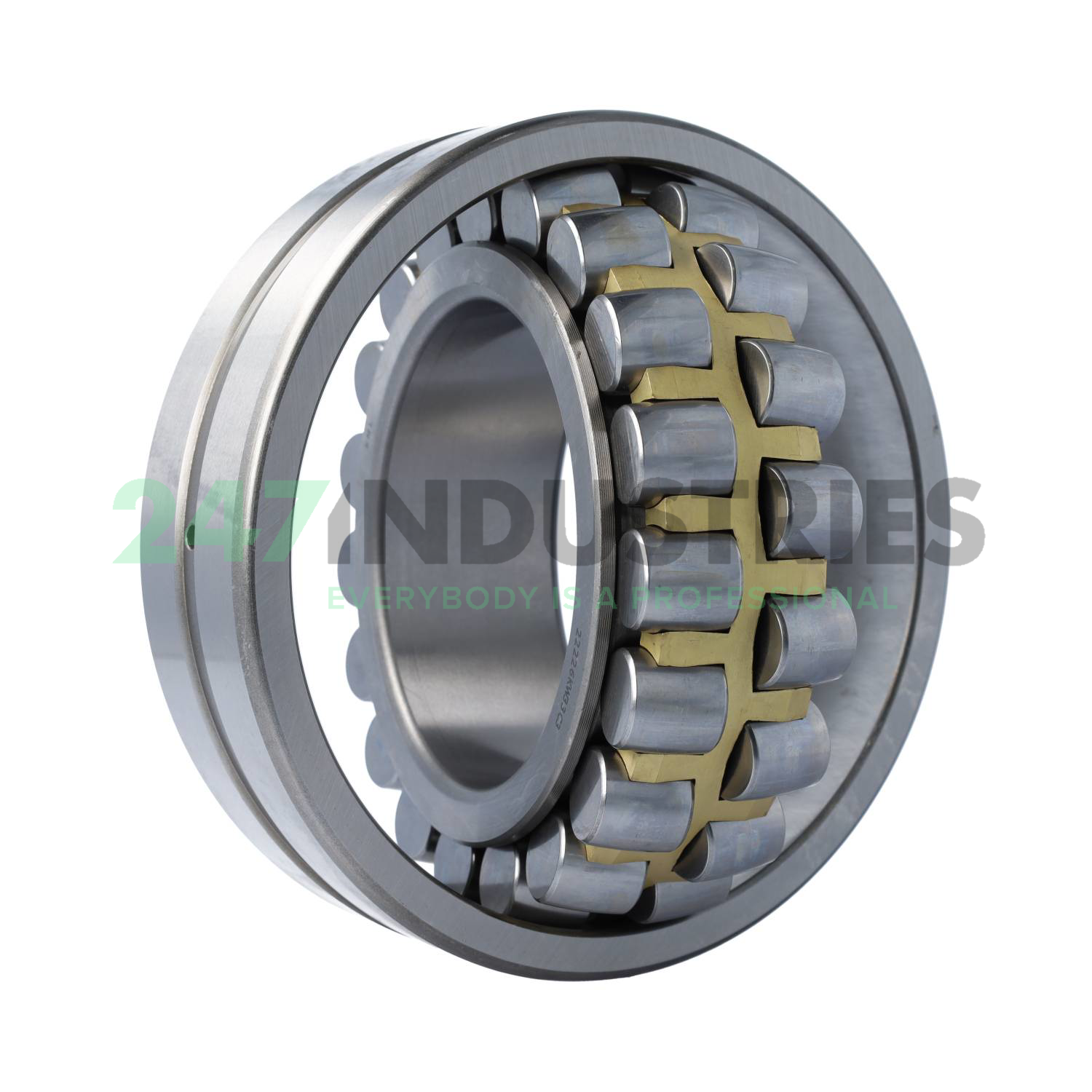

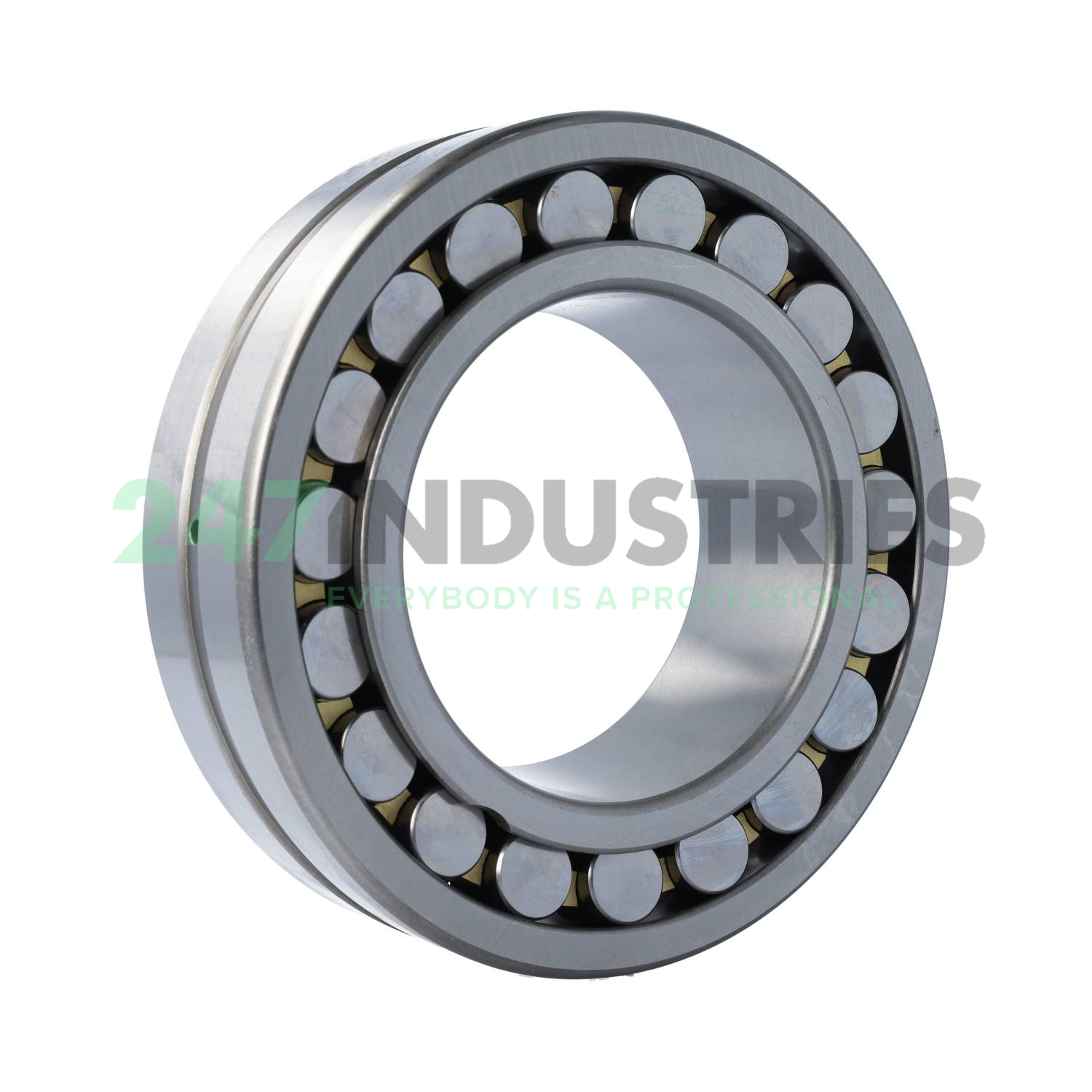

22226KW33C3 Keep Moving Long

All dimensions

1. Inner (d) MM 130
2. Outer (D) MM 230
3. Width (B) MM 64
4. Inner (d) Inch 5.1181
5. Outer (D) Inch 9.0551
6. Width (B) Inch 2.5197

Suffix description

1. K Tapered Bore, Taper 1:12
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand Keep Moving Long
3. Item number 22226KW33C3 Keep Moving Long
4. Also known as 22226-E1-K-C3
   22226-E1-XL-K-C3
   22226EK/C3
   22226KEJW33C3

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 11.35

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
