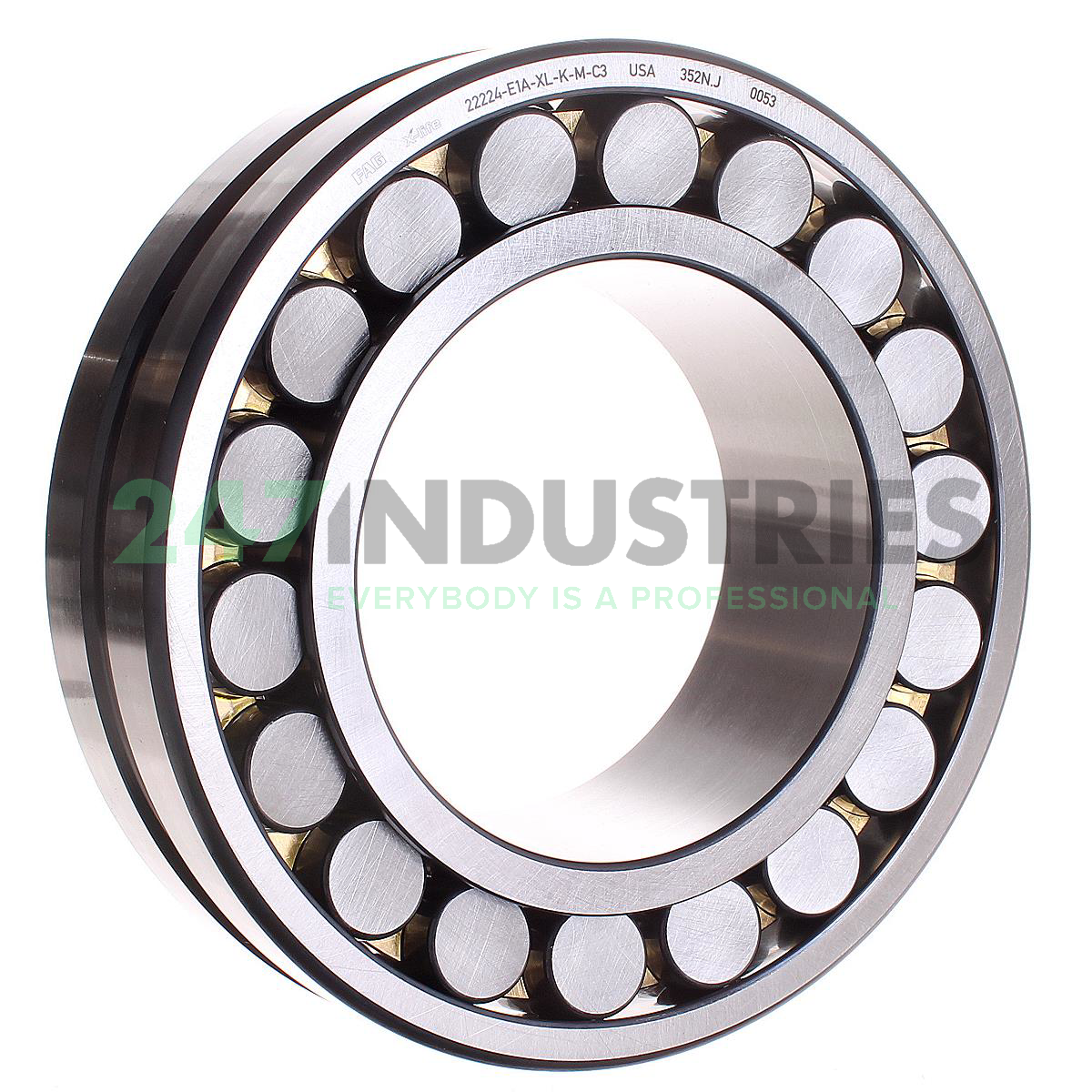

22224K MB W33 C3 KFB Clarfeld

All dimensions

1. Inner (d) MM 120
2. Outer (D) MM 215
3. Width (B) MM 58
4. Inner (d) Inch 4.7244
5. Outer (D) Inch 8.4646
6. Width (B) Inch 2.2835

Suffix description

1. K Tapered Bore, Taper 1:12
2. MB 2-Piece Brass Cage Guided On The Inner Ring
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
4. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand KFB Clarfeld
3. Item number 22224K MB W33 C3 KFB Clarfeld
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 8.55

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
