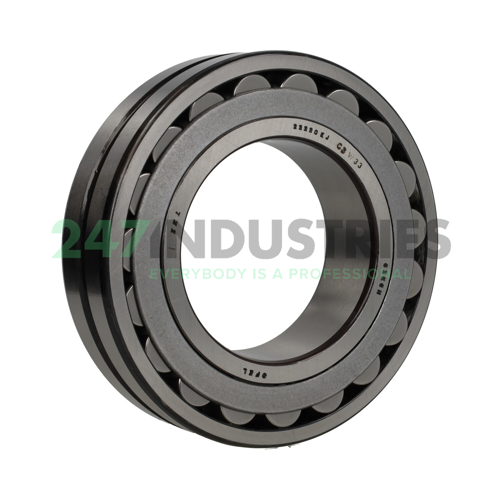

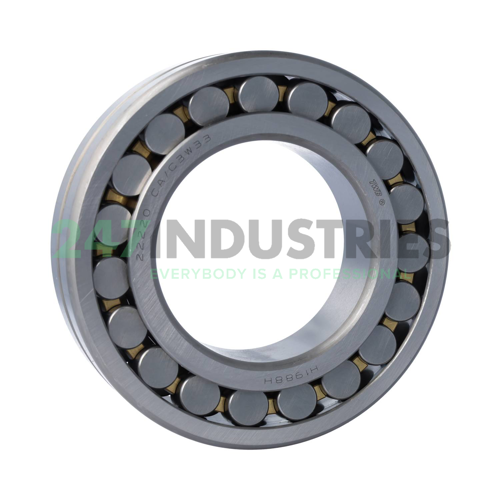

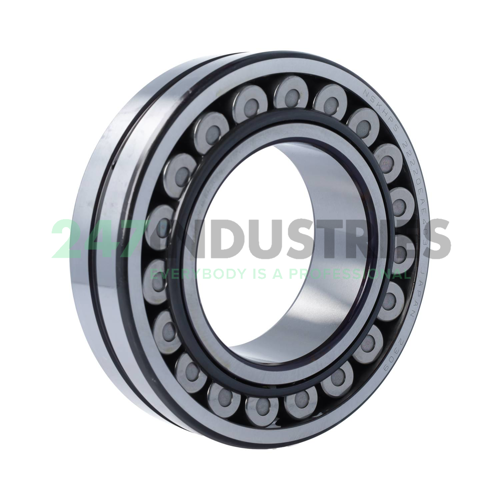

22220CC W33 C3 China

All dimensions

1. Inner (d) MM 100
2. Outer (D) MM 180
3. Width (B) MM 46
4. Inner (d) Inch 3.937
5. Outer (D) Inch 7.0866
6. Width (B) Inch 1.811

Suffix description

1. CC Spherical Roller Bearing Of C Design But With Enhanced Roller Guidance
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand China
3. Item number 22220CC W33 C3 China
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 4.69

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
