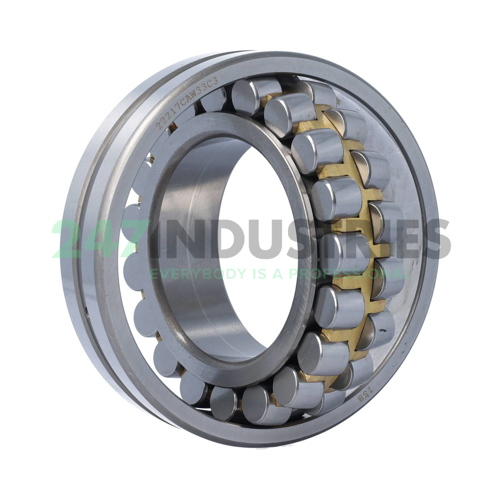

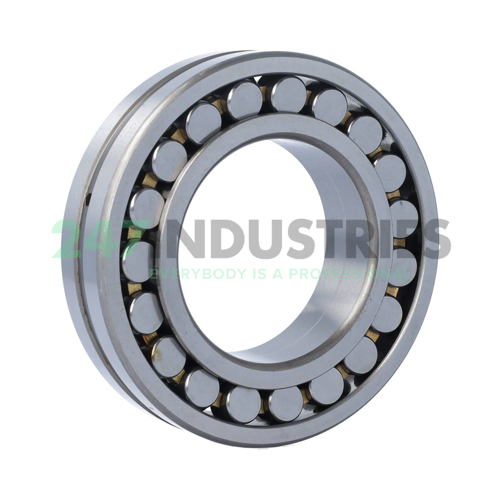

22217CAW33C3 ISB

All dimensions

1. Inner (d) MM 85
2. Outer (D) MM 150
3. Width (B) MM 36
4. Inner (d) Inch 3.3465
5. Outer (D) Inch 5.9055
6. Width (B) Inch 1.4173

Suffix description

1. CA Bearings With Symmetrical Rollers And Retaining Ribs. The Cage Is A One-Piece, Double Pronged Machined Cage Of Brass
2. W33 A Lubricating Groove And Three Lubricating Holes On The Outer Ring
3. C3 Larger Clearance Than Standard

Technical details

1. Availability 1 pc
2. Brand ISB
3. Item number 22217CAW33C3 ISB
4. Also known as 22217-E1A-M-C3
   22217-E1A-XL-M-C3
   22217EMW33C3

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 2.6

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type M - Brass Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
