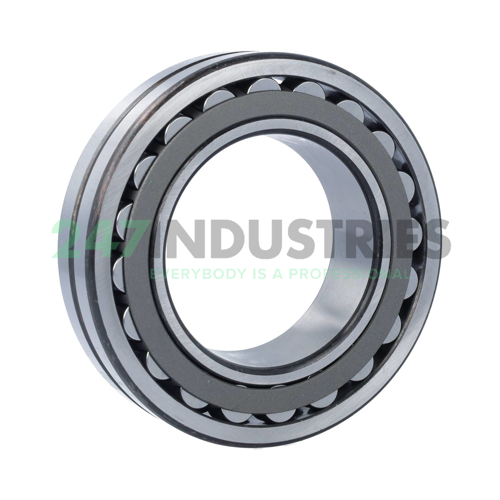

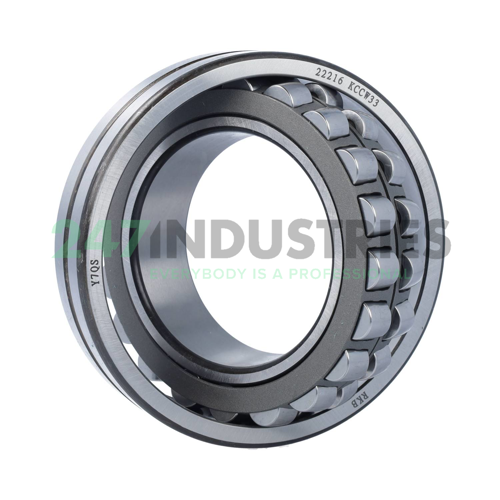

22216KCCW33 RKB

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 33
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.2992

Suffix description

1. K Tapered Bore, Taper 1:12
2. CC Bearing With Symmetrical Rollers, Flangeless Inner Ring, A Non-Intergral Guide Ring Between The Tow Rows Of Rollers Centred On The Inner Ring And One Pressed Steel Window-Type Cage For Each Roller Row
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 1 pc
2. Brand RKB
3. Item number 22216KCCW33 RKB
4. Also known as 22216-E1-K
   22216-E1-XL-K
   22216EK
   22216KEJW33

5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.96

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
