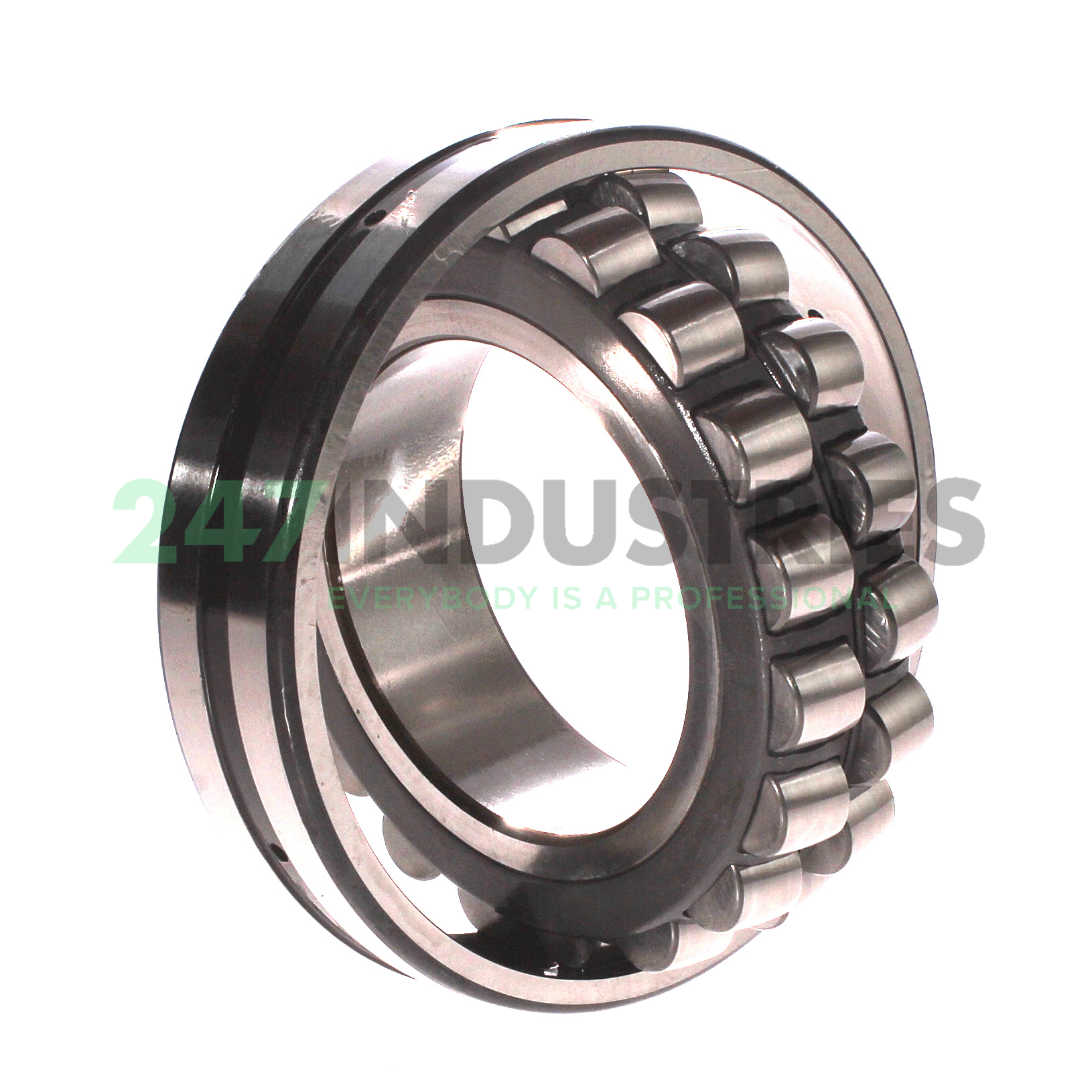

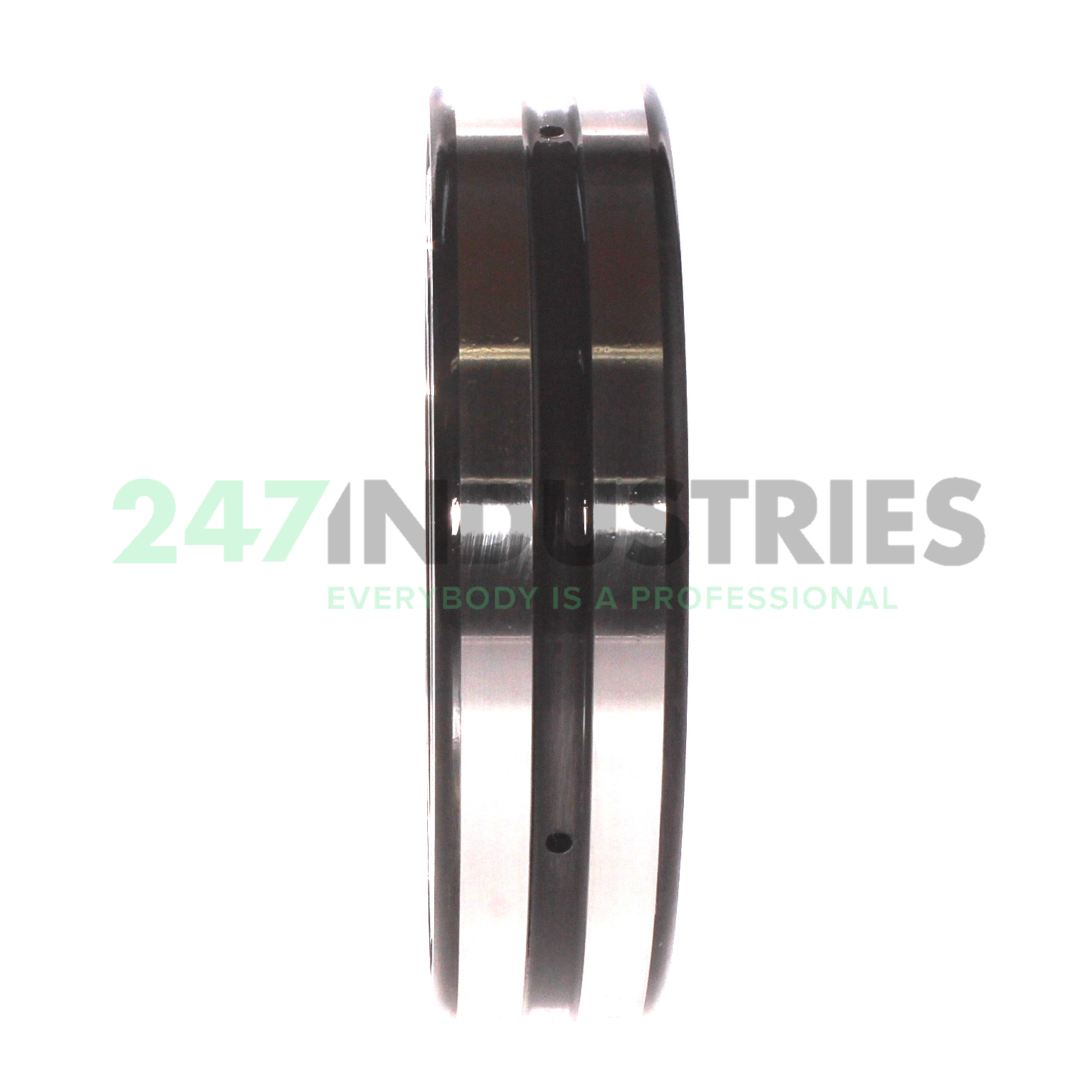

22216EAK D1 NTN

All dimensions

1. Inner (d) MM 80
2. Outer (D) MM 140
3. Width (B) MM 33
4. Inner (d) Inch 3.1496
5. Outer (D) Inch 5.5118
6. Width (B) Inch 1.2992

Suffix description

1. EA Higher Capacity, Better Than Former Suffix E
2. K Tapered Bore, Taper 1:12
3. D1 Lubrication Groove And Three Holes In Bearing Outer Ring

Technical details

1. Availability 0 pcs
2. Brand NTN
3. Item number 22216EAK D1 NTN
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.96

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
