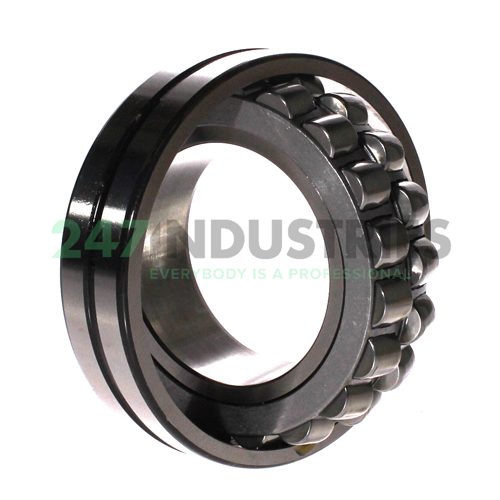

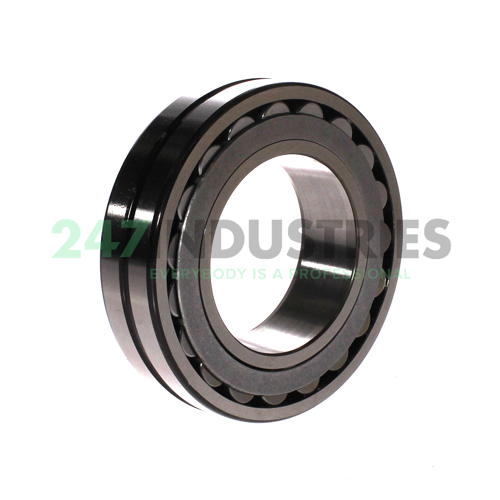

22214EK W33 J C3 ZKL

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 31
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.2205

Suffix description

1. E Double Row Spherical Roller Bearing With Higher Load Rating
2. K Tapered Bore, Taper 1:12
3. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
4. J Pressed Sheet Steel Cage Guided On The Outer Diameter (M Profile)
5. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 2 pcs
2. Brand ZKL
3. Item number 22214EK W33 J C3 ZKL
4. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.52

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
