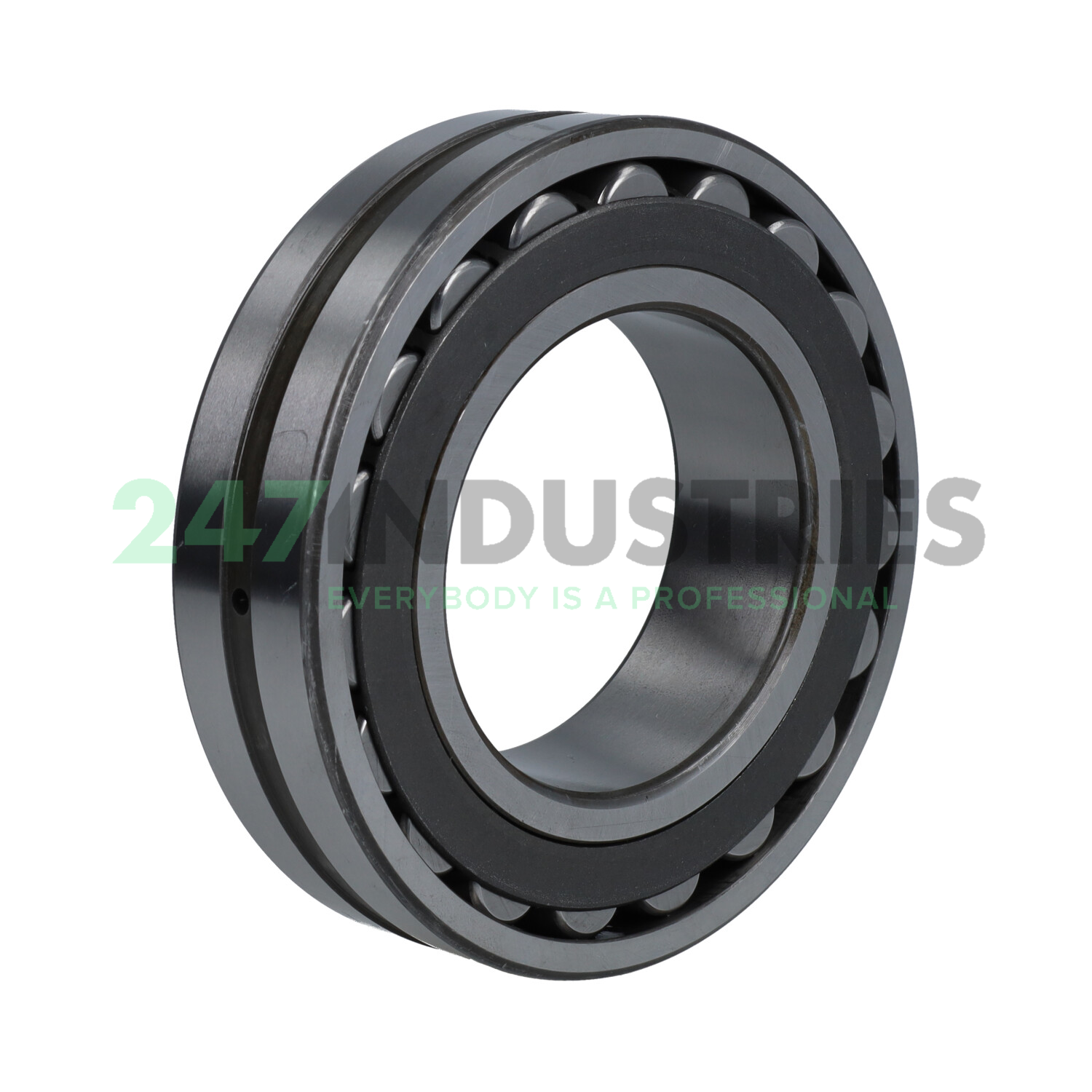

22214EAW33C3 SNR

All dimensions

1. Inner (d) MM 70
2. Outer (D) MM 125
3. Width (B) MM 31
4. Inner (d) Inch 2.7559
5. Outer (D) Inch 4.9213
6. Width (B) Inch 1.2205

Suffix description

1. EA Higher Capacity, Better Than Former Suffix E
2. W33 Lubrication Groove And Three Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 0 pcs
2. Brand SNR
3. Item number 22214EAW33C3 SNR
4. EAN 3413520083106
5. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 1.52

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
