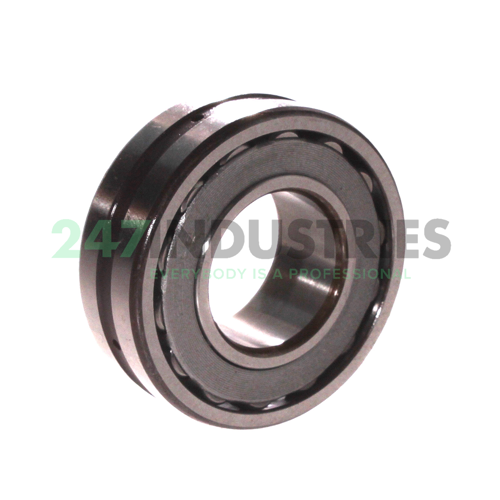

22205CE4S11 NSK

All dimensions

1. Inner (d) MM 25
2. Outer (D) MM 52
3. Width (B) MM 18
4. Inner (d) Inch 0.9843
5. Outer (D) Inch 2.0472
6. Width (B) Inch 0.7087

Suffix description

1. C Two-Piece Pressed Steel Cage With Guide Ring
2. E4 Lubrication Groove And Holes In Bearing Outer Ring
3. S11 Inner And Outer Ring Heat Stabilized To 200°C

Technical details

1. Availability 19 pcs
2. Brand NSK
3. Item number 22205CE4S11 NSK
4. Also known as 22205CC/W33
   22205CE4
   22205E
   22205E1
   22205-E1
   22205-E1-XL
   22205ES

5. EAN 00029176078095
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.155

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
