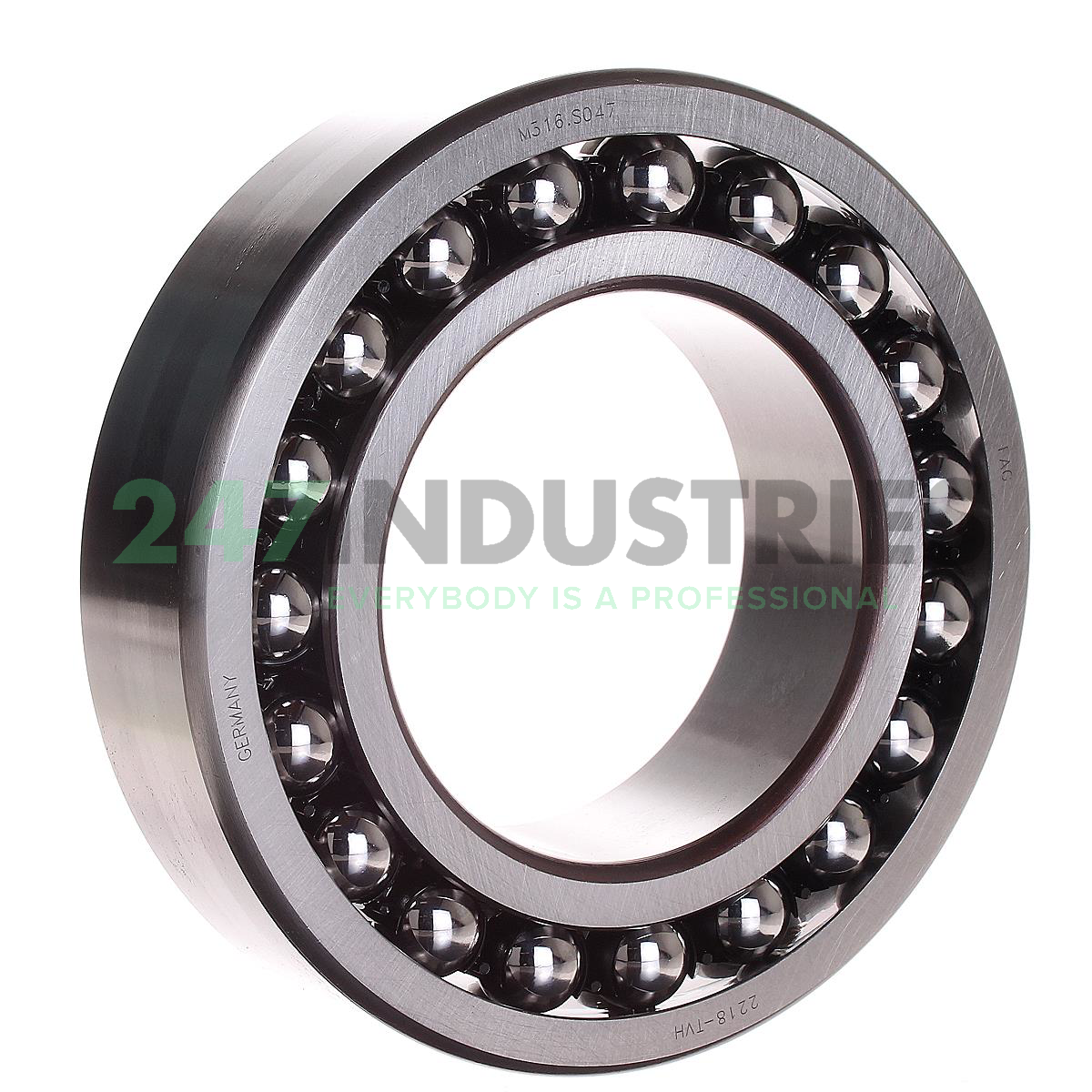

2218-TVH>J FAG

All dimensions

1. Inner (d) MM 90
2. Outer (D) MM 160
3. Width (B) MM 40
4. Inner (d) Inch 3.5433
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.5748
7. Width (b) mm 40

Suffix description

1. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66
2. >J 100% Identical Regardless Of Production Location

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 2218-TVH>J FAG
4. Also known as 2218TNG
   2218-TVH

5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.4

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 28500
2. Limiting speed (n G) 4400
3. Reference speed (n ϑr) 5200
