2213-TVH-C3>N FAG

All dimensions

1. Inner (d) MM 65
2. Outer (D) MM 120
3. Width (B) MM 31
4. Inner (d) Inch 2.5591
5. Outer (D) Inch 4.7244
6. Width (B) Inch 1.2205
7. Width (b) mm 31

Suffix description

1. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66
2. C3 Internal Clearance Larger Than Normal
3. >N Version Code

Technical details

1. Availability 0 pcs
2. Brand FAG
3. Item number 2213-TVH-C3>N FAG

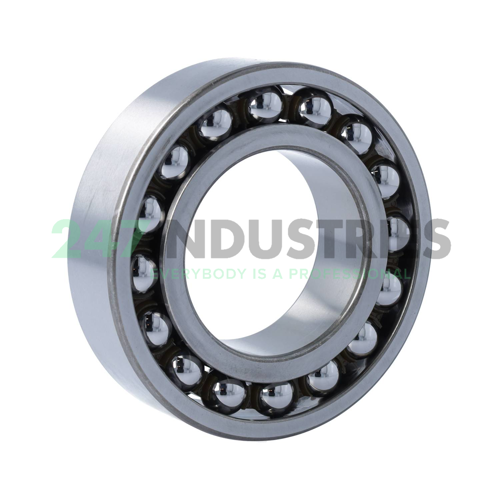

4. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 1.4

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 19200
2. Limiting speed (n G) 5600
3. Reference speed (n ϑr) 6200
