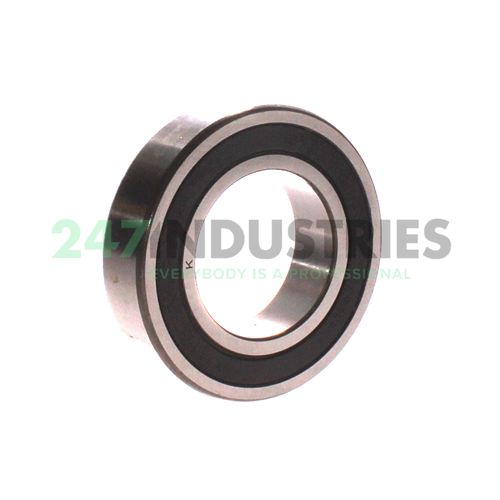

2210K-2RSTNH RHP

All dimensions

1. Inner (d) MM 50
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.9685
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055

Suffix description

1. K Tapered Bore, Taper 1:12
2. 2RS Rubber Seals At Each Side Of The Bearing
3. TNH Polyamide Snap-On Cage, Located On The Rolling Elements

Technical details

1. Availability 10 pcs
2. Brand RHP
3. Item number 2210K-2RSTNH RHP
4. Also known as 2210E-2RS1KTN9
   2210K 2RS TNG
   2210-K-2RS-TVH

5. EAN 00747023076000
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.595

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play Cn Normal Internal Play
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
