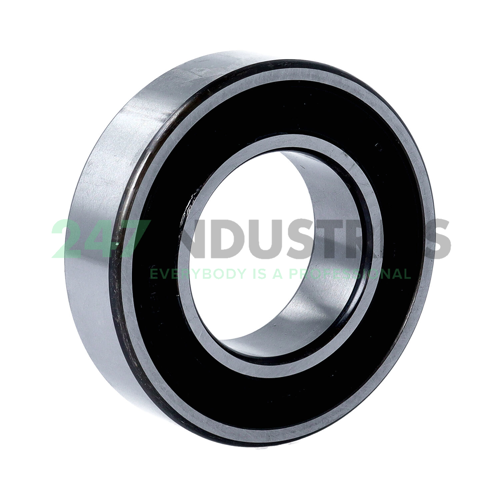

2209-2RSTNGC3 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 85
3. Width (B) MM 23
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.3465
6. Width (B) Inch 0.9055

Suffix description

1. 2RS Seal At Each Side Of The Bearing
2. TNG Solid Cage Of Glass-Fire Reinforced Polyamide, Ball Riding
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 1 pc
2. Brand NSK
3. Item number 2209-2RSTNGC3 NSK
4. EAN 00029176415098
5. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.545

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
