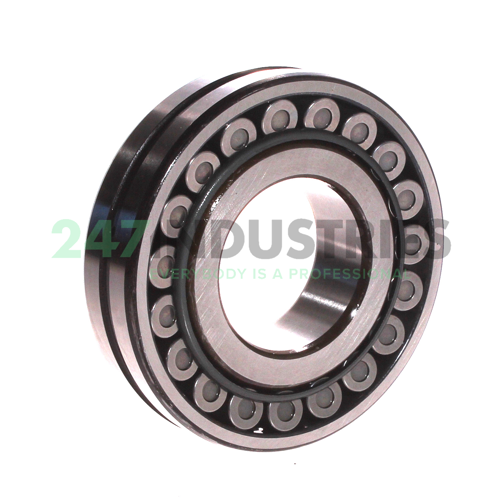

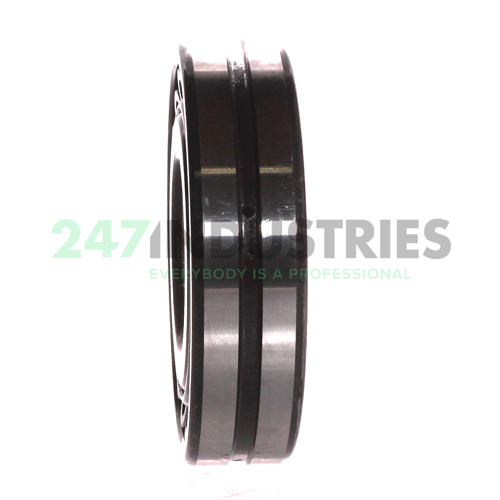

21309EAE4C3 NSK

All dimensions

1. Inner (d) MM 45
2. Outer (D) MM 100
3. Width (B) MM 25
4. Inner (d) Inch 1.7717
5. Outer (D) Inch 3.937
6. Width (B) Inch 0.9843

Suffix description

1. EA Higher Capacity, Better Than Former Suffix E
2. E4 Lubrication Groove And Holes In Bearing Outer Ring
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 30 pcs
2. Brand NSK
3. Item number 21309EAE4C3 NSK
4. Also known as 21309E/C3
   21309-E1-C3
   21309-E1-XL-C3
   21309EJW33C3

5. EAN 00029176410628
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.998

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W33 - Lubrication Groove and 3 Holes
3. Seal No Seal
4. Cage Type S - Steel or Standard Cage
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution
