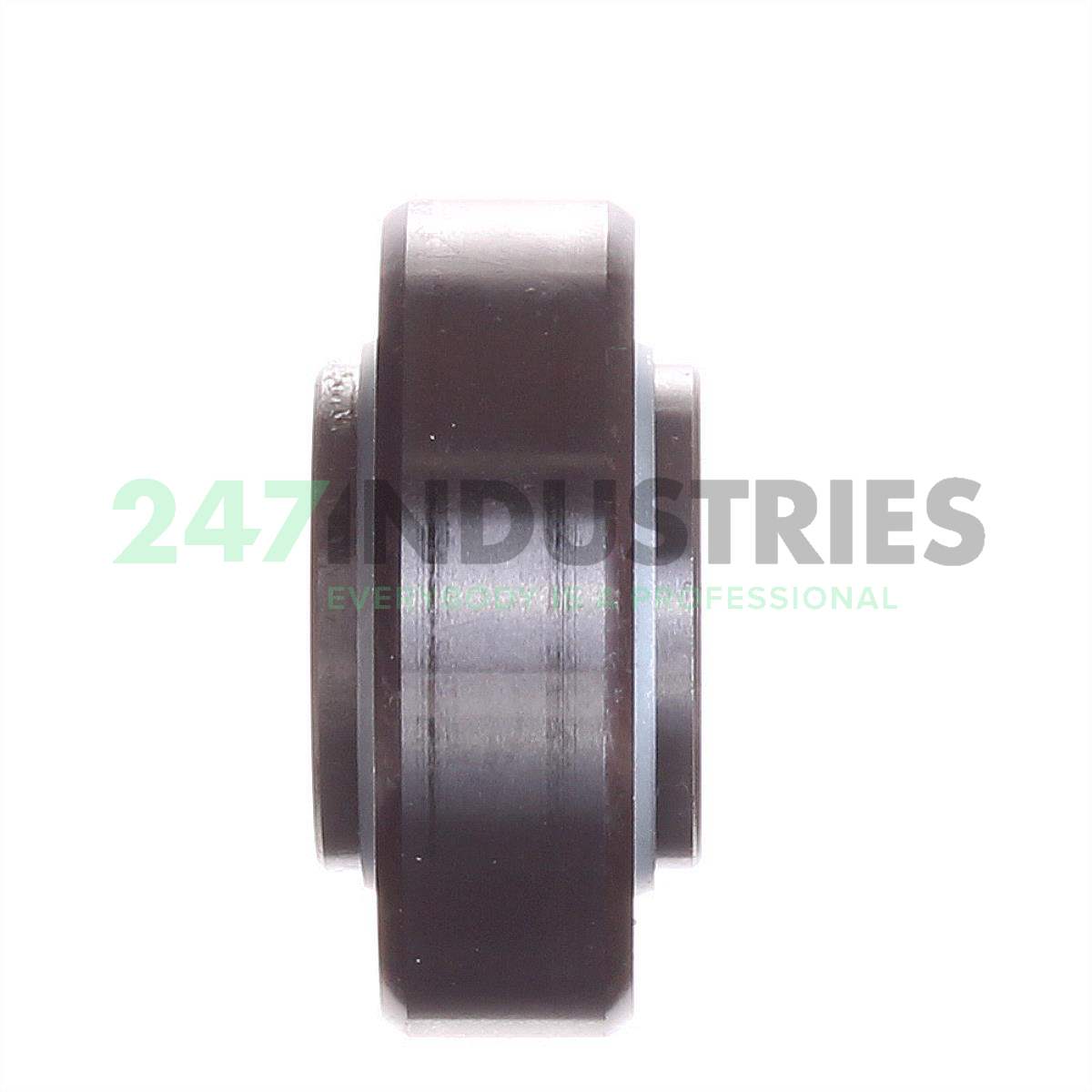

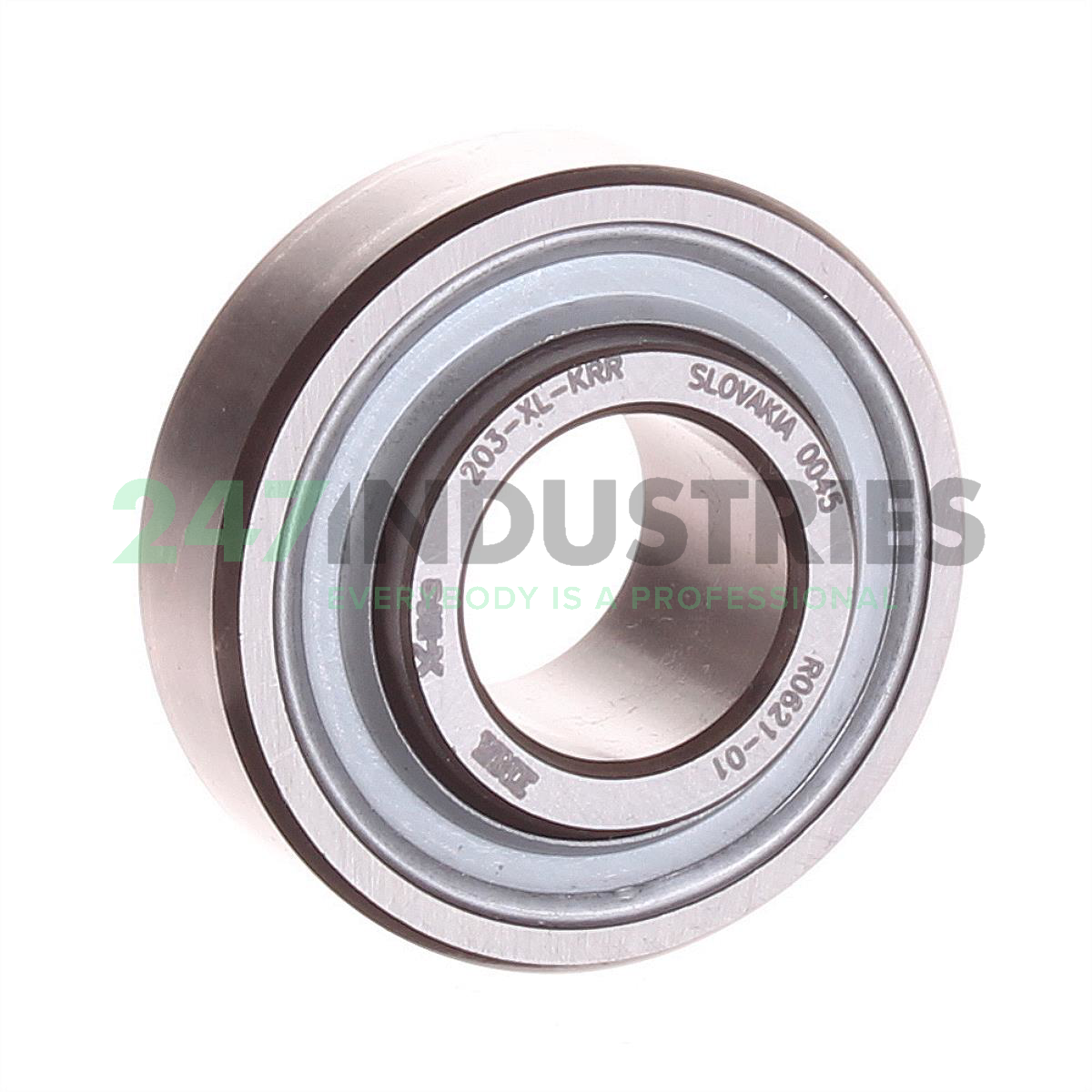

203-XL-KRR INA

All dimensions

1. Inner (d) MM 17
2. Outer (D) MM 40
3. Width (B) MM 18,3
4. Inner (d) Inch 0.6693
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.7205
7. Width (b) mm 18,3

Suffix description

1. XL X-Life
2. KRR Lip Seals On Both Sides (R Type Seal - Has A Zinc Plated Inner And Outer Cover. Between The Covers There Is An NBR Seal Lip Running On A Ground Shoulder)

Technical details

1. Availability 25 pcs
2. Brand INA
3. Item number 203-XL-KRR INA
4. Also known as 0008082530000
   203-KRR

5. EAN 4012802783520
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.09

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4750
2. Radial Dynamic Load Rating Cr (N) 10100
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Radial insert ball bearings 2..-KRR, cylindrical outer ring, inner ring for fit, R seals on both sides

Downloads and links

1. X-life brochure X-life brochure
2. Link to manufacturer Link to manufacturer
