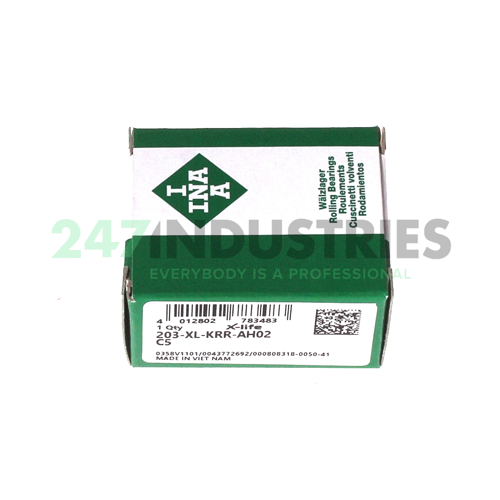

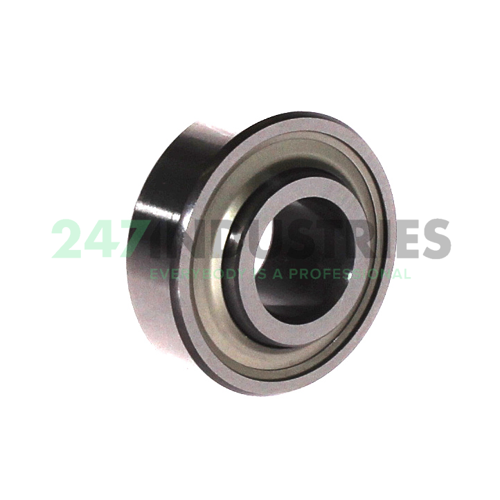

203-XL-KRR-AH02-C5 INA

All dimensions

1. Inner (d) MM 16,2
2. Outer (D) MM 40
3. Width (B) MM 18,3
4. Inner (d) Inch 0.6378
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.7205
7. Width (b) mm 18,3

Suffix description

1. XL X-Life
2. K Conrad (Non-Filling Slot) Type
3. RR Two Land Riding Rubber Seals
4. AH02 Different Inner Diameter From Basic Part Number
5. C5 Bearing Internal Clearance Greater Than C4

Technical details

1. Availability 113 pcs
2. Brand INA
3. Item number 203-XL-KRR-AH02-C5 INA
4. Also known as 0008083180050
   203-KRR-AH02-C5

5. EAN 4012802783476
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.06

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C5 Internal Play (Higher than C4)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 4750
2. Radial Dynamic Load Rating Cr (N) 10100
3. ECLASS number 23-05-08-01
4. ECLASS2 number 23-05-08-01
5. Medias description Radial insert ball bearings 2..-KRR, cylindrical outer ring, inner ring for fit, R seals on both sides
