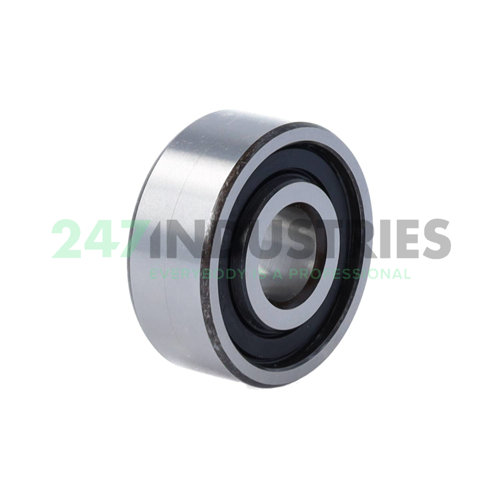

203-KRR-AH14 INA

All dimensions

1. Inner (d) MM 16
2. Outer (D) MM 40
3. Width (B) MM 18,3
4. Inner (d) Inch 0.6299
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.7205

Suffix description

1. K Conrad (Non-Filling Slot) Type
2. RR Two Land Riding Rubber Seals
3. AH14 Features Differing From The Original

Technical details

1. Availability 13 pcs
2. Brand INA
3. Item number 203-KRR-AH14 INA
4. Also known as 0009329060000

5. EAN 4012802805352
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.06

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01
