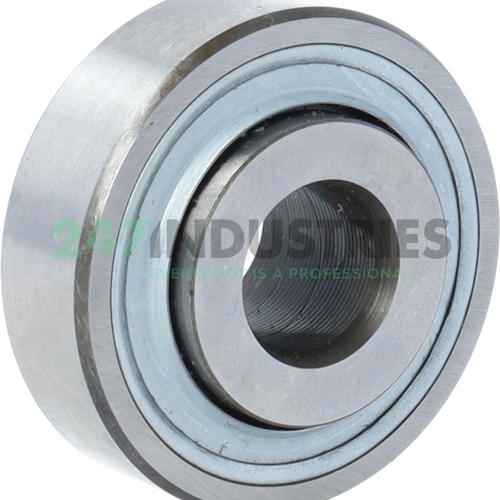

203-KRR-AH05 INA

All dimensions

1. Inner (d) MM 13
2. Outer (D) MM 40
3. Width (B) MM 18,3
4. Inner (d) Inch 0.5118
5. Outer (D) Inch 1.5748
6. Width (B) Inch 0.7205

Suffix description

1. K Conrad (Non-Filling Slot) Type
2. RR Two Land Riding Rubber Seals
3. AH05 Features Differing From The Original

Technical details

1. Availability 0 pcs
2. Brand INA
3. Item number 203-KRR-AH05 INA
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.06

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
