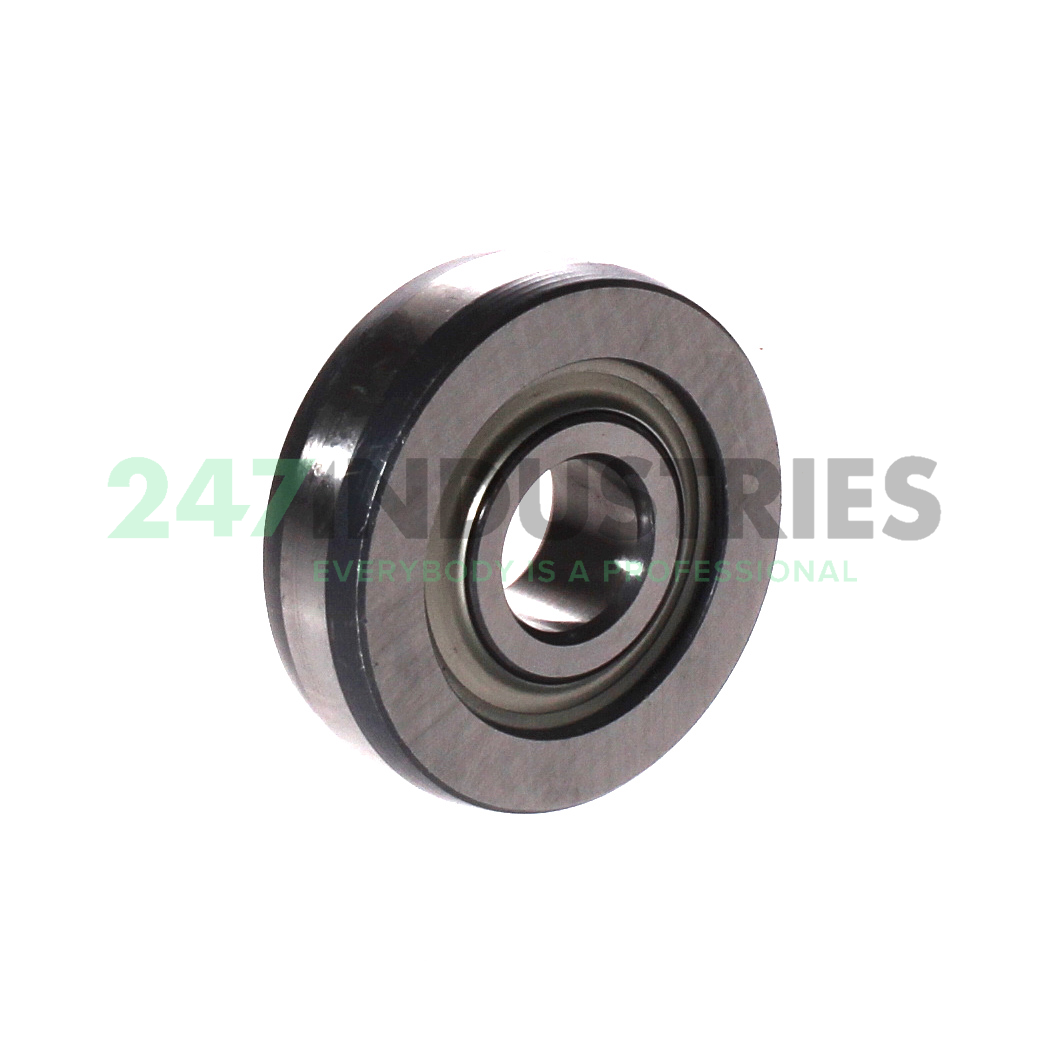

203-KRR-AH03 INA

All dimensions

1. Inner (d) MM 15,81
2. Outer (D) MM 50,8
3. Width (B) MM 15
4. Inner (d) Inch 0.6224
5. Outer (D) Inch 2
6. Width (B) Inch 0.5906

Suffix description

1. K Conrad (Non-Filling Slot) Type
2. RR Two Land Riding Rubber Seals
3. AH03 Bore Size Different Than Standard

Technical details

1. Availability 17 pcs
2. Brand INA
3. Item number 203-KRR-AH03 INA
4. Also known as 0008083500000

5. EAN 4012802783469
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.06

Product Properties

1. Bore C - Cylindrical Bore
2. Seal 2RS - Rubber Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. ECLASS number 23-05-08-01
2. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
