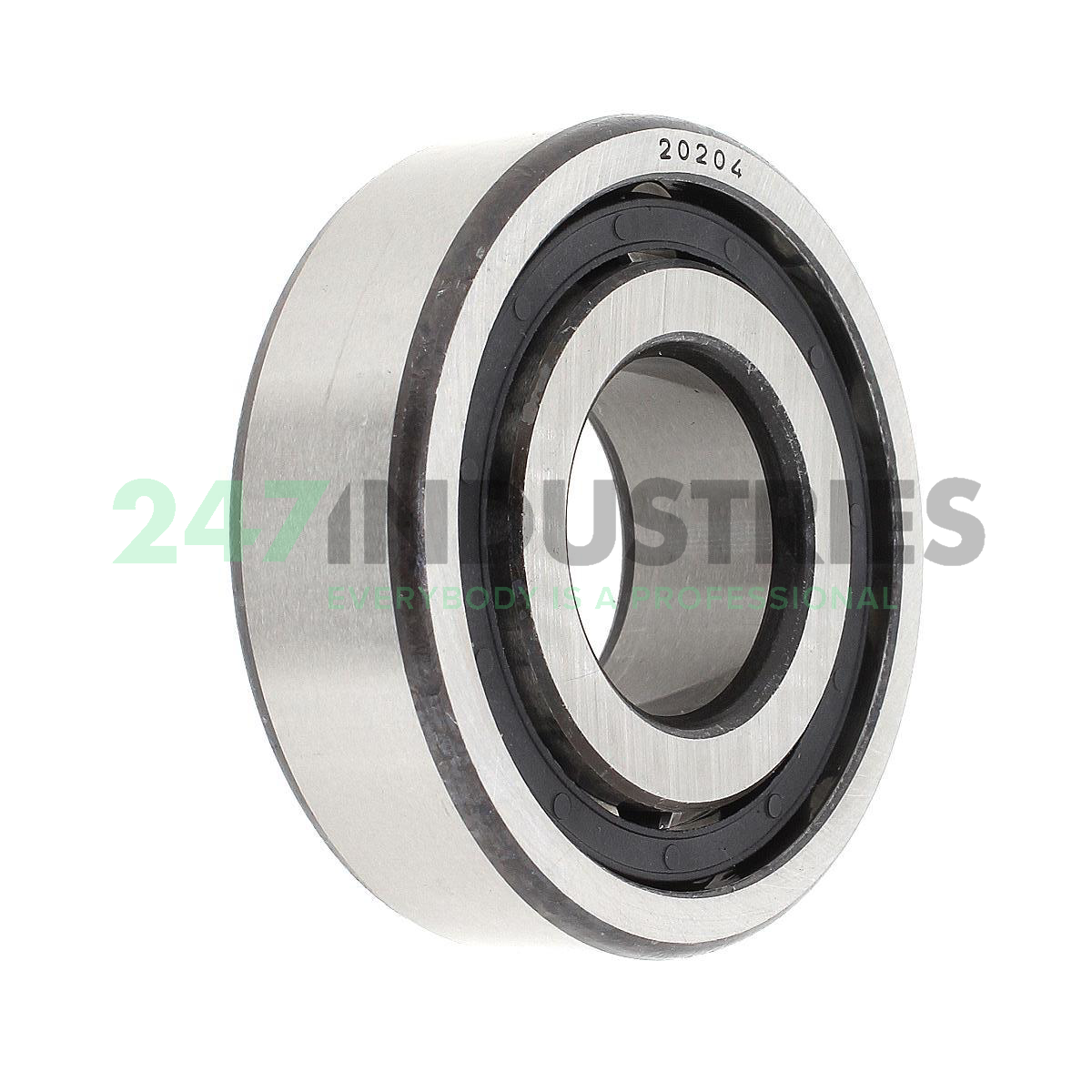

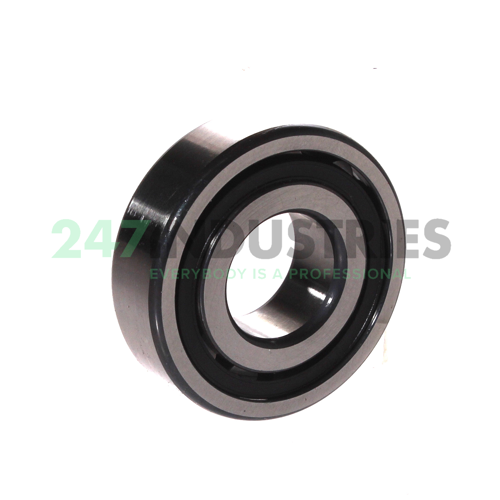

20204-TVP FAG

All dimensions

1. Inner (d) MM 20,00
2. Outer (D) MM 47,00
3. Width (B) MM 14,00
4. Inner (d) Inch 0.7874
5. Outer (D) Inch 1.8504
6. Width (B) Inch 0.5512
7. Width (b) mm 14,00

Suffix description

1. TVP Moulded Polyamide Window-Type Cage, Rolling Element Riding

Technical details

1. Availability 12 pcs
2. Brand FAG
3. Item number 20204-TVP FAG
4. Also known as 0167017120000

5. EAN 4012801159746
6. Category Spherical Roller Bearing

Weight and Dimensions

1. Weight (kg) 0.116

Product Properties

1. Bore C - Cylindrical Bore
2. Lubrication Enhancement W - No Lubrication Groove or Holes
3. Seal No Seal
4. Cage Type P - Plastic Molded Cage
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
8. Vibrating Screen Execution Non Vibrating Screen Execution

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 19400
2. Radial Dynamic Load Rating Cr (N) 20400
3. Basic static load rating, radial (C 0r) "19400.0000"
4. Limiting speed (n G) "13100.0000"
5. ECLASS number 23-05-09-12
6. ECLASS2 number 23-05-09-12
7. Medias description Barrel roller bearings 202, main dimensions to DIN 635-1
