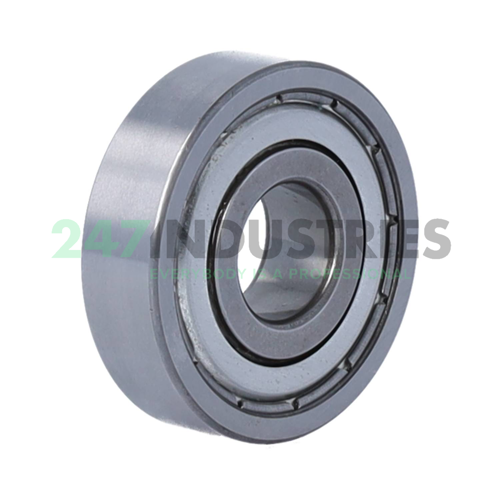

1633DSTN SMT

All dimensions

1. Inner (d) MM 15,88
2. Outer (D) MM 44,45
3. Width (B) MM 12,7
4. Inner (d) Inch 0.625
5. Outer (D) Inch 1.75
6. Width (B) Inch 0.5

Suffix description

1. DS Double Metal Shield
2. TN Injection Moulded Snap-Type Cage Of Polyamide, Ball Centered

Technical details

1. Availability 0 pcs
2. Brand SMT
3. Item number 1633DSTN SMT
4. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.092

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type P - Plastic Molded Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment
