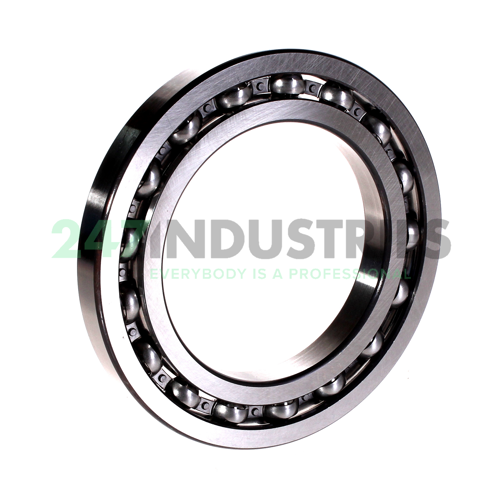

16018-C4 FAG

All dimensions

1. Width (b) mm 16

Suffix description

1. C4 Bearing Internal Clearance Greater Than C3

Technical details

1. Availability 3 pcs
2. Brand FAG
3. Item number 16018-C4 FAG
4. Also known as 0167011940040

5. EAN 4026677958235
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.848

Product Properties

1. Bore C - Cylindrical Bore
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C4 Internal Play (Higher than C3)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 39500
2. Radial Dynamic Load Rating Cr (N) 44000
3. Limiting speed (n G) 6800
4. Reference speed (n ϑr) 4400
5. ECLASS number 23-05-08-01
6. ECLASS2 number 23-05-08-01
7. Medias description Deep groove ball bearings 160, main dimensions to DIN 625-1

Downloads and links

1. Link to manufacturer Link to manufacturer
