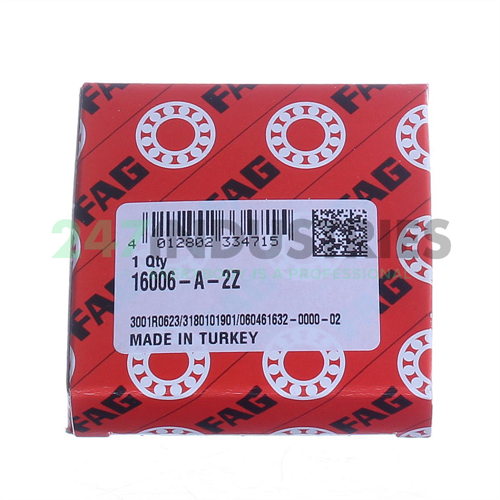

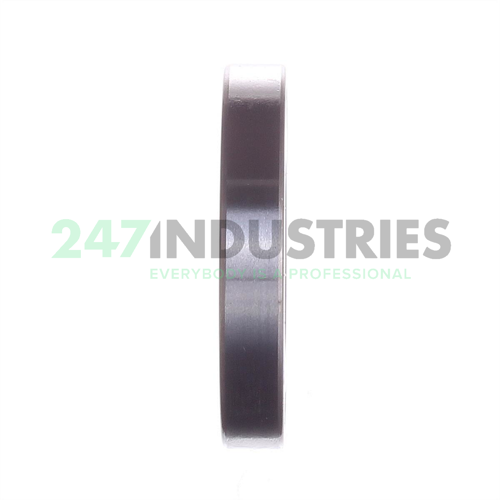

16006-A-2Z FAG

All dimensions

1. Inner (d) MM 30
2. Outer (D) MM 55
3. Width (B) MM 9
4. Inner (d) Inch 1.1811
5. Outer (D) Inch 2.1654
6. Width (B) Inch 0.3543
7. Width (b) mm 9

Suffix description

1. A Internal Design Modification
2. 2Z Two Metallic Shields
3. X10 Industrial Packaging

Technical details

1. Availability 271 pcs
2. Brand FAG
3. Item number 16006-A-2Z FAG
4. Also known as 0604616320000

5. EAN 4012802334715
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.09

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play Cn Normal Internal Play
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) 7390
2. Limiting speed (n G) 15700
3. Reference speed (n ϑr) 10000
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01

Downloads and links

1. Link to manufacturer Link to manufacturer
