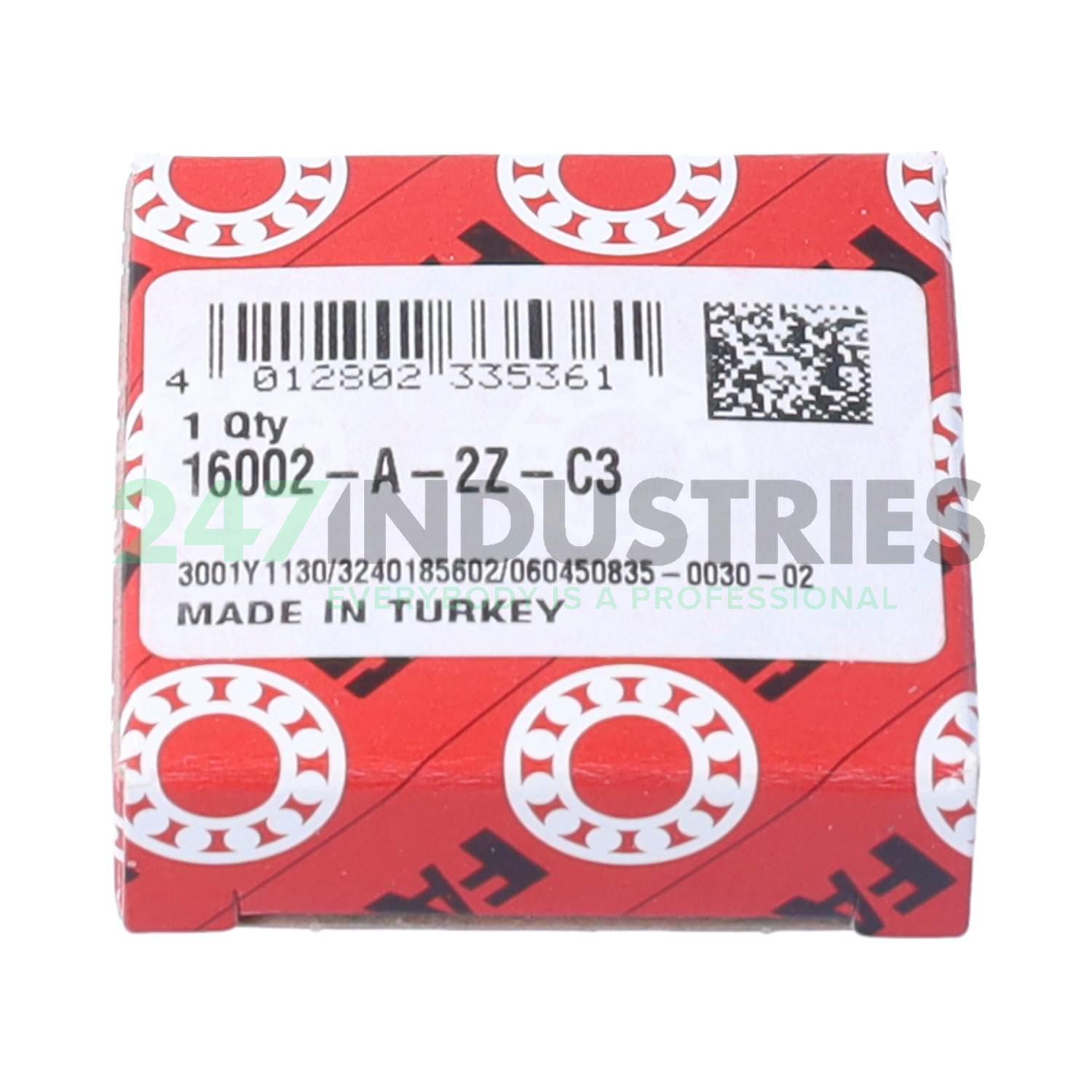

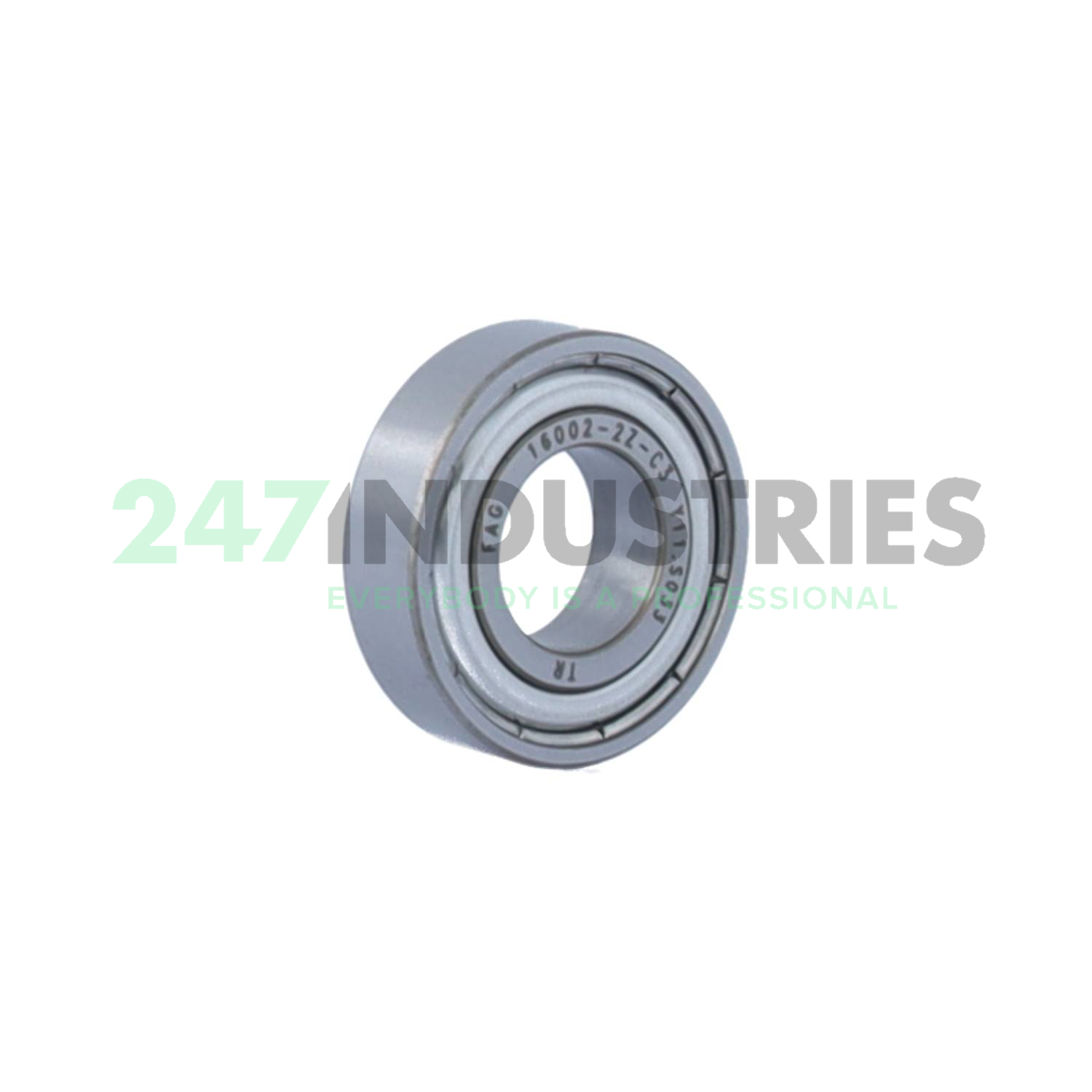

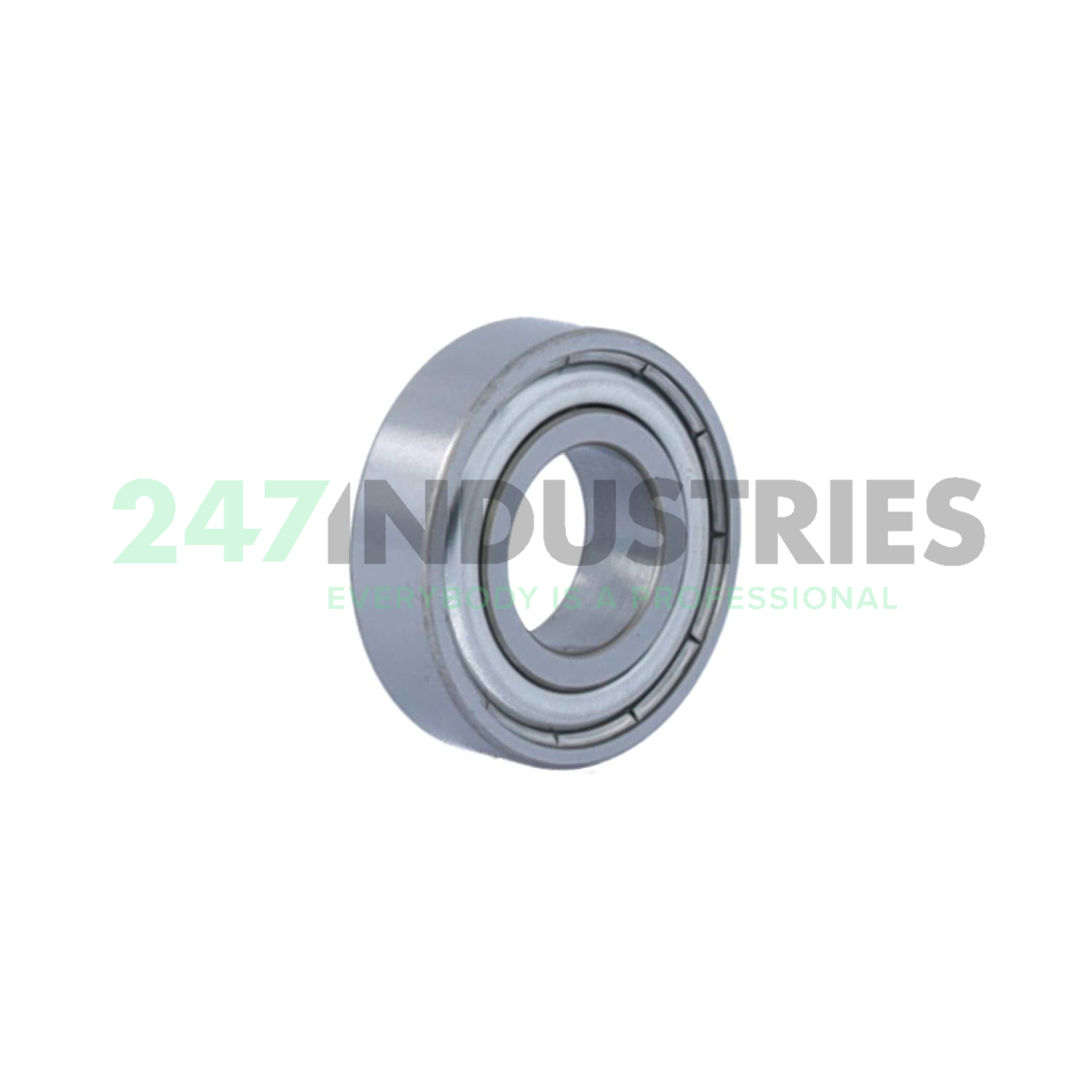

16002-A-2Z-C3 FAG

All dimensions

1. Inner (d) MM 15,00
2. Outer (D) MM 32,00
3. Width (B) MM 8,00
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.2598
6. Width (B) Inch 0.3150
7. Width (b) mm 8,00

Suffix description

1. A Internal Design Modification
2. 2Z Two Metallic Shields
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 8 pcs
2. Brand FAG
3. Item number 16002-A-2Z-C3 FAG
4. Also known as 0604508350030

5. EAN 4012802335361
6. Category Deep Groove Ball Bearings Single Row

Weight and Dimensions

1. Weight (kg) 0.027

Product Properties

1. Bore C - Cylindrical Bore
2. Seal ZZ/2Z - Steel Seal on Two Sides
3. Cage Type S - Steel or Standard Cage
4. External Modification No External Modification
5. Radial Internal Play C3 Internal Play (Higher than Cn)
6. Precision Standard Precision
7. Lubrication Standard Lubrication
8. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
9. Special Treatment No Special Treatment

Data from Schaeffler (medias)

1. Basic static load rating, radial (C 0r) "2840.0000"
2. Limiting speed (n G) "28500.0000"
3. Reference speed (n ϑr) "20000.0000"
4. ECLASS number 23-05-08-01
5. ECLASS2 number 23-05-08-01
