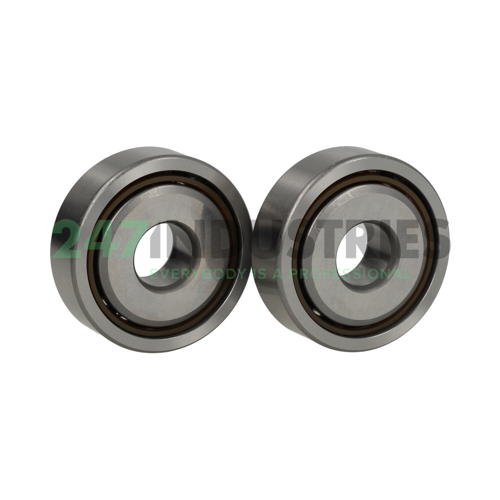

15TAC47BDFC10PN7A NSK

All dimensions

1. Inner (d) MM 15
2. Outer (D) MM 47
3. Width (B) MM 30
4. Inner (d) Inch 0.5906
5. Outer (D) Inch 1.8504
6. Width (B) Inch 1.1811

Suffix description

1. B High Capacity & Higher Speed (Replaces “A” Type)
2. DF Duplex, Face-to-Face
3. C10 Metric Series
4. PN7A ISO Class 4 (Abec 7) Modified; More Stringent Standard For Axial Runout Uxx Or Pss - Special Accuracy Class Or Features

Technical details

1. Availability 20 pcs
2. Brand NSK
3. Item number 15TAC47BDFC10PN7A NSK
4. Category Angular Contact Thrust Ball Bearings, Single Direction

Weight and Dimensions

1. Weight (kg) 0.28

Product Properties

1. Cage Type TB - Hard Fiber Cage
2. Precision P4 Precision (Higher than P5)
