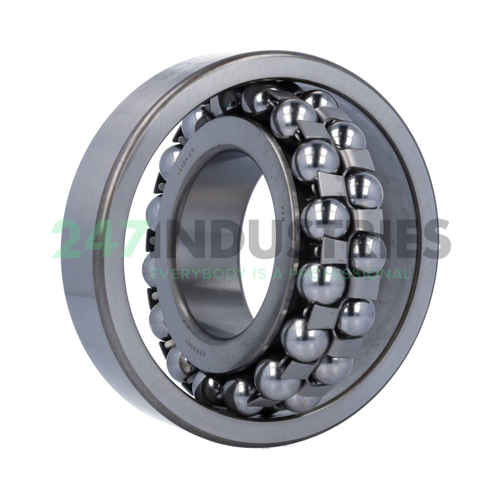

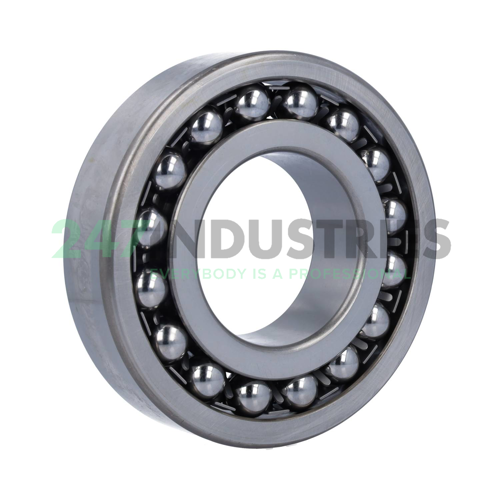

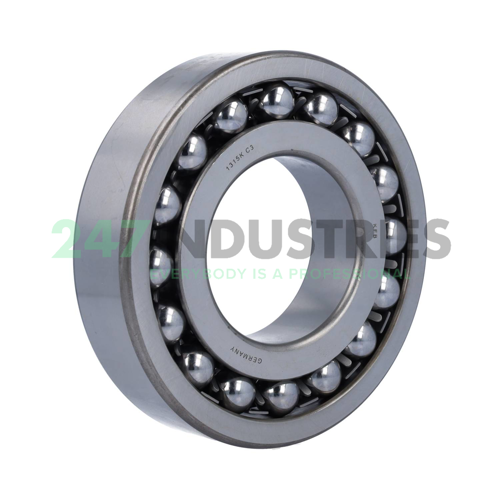

1315 KC3 KFB Clarfeld

All dimensions

1. Inner (d) MM 75
2. Outer (D) MM 160
3. Width (B) MM 37
4. Inner (d) Inch 2.9528
5. Outer (D) Inch 6.2992
6. Width (B) Inch 1.4567

Suffix description

1. K Tapered Bore, Taper 1:12
2. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 7 pcs
2. Brand KFB Clarfeld
3. Item number 1315 KC3 KFB Clarfeld
4. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 3.51

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type S - Steel or Standard Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C
