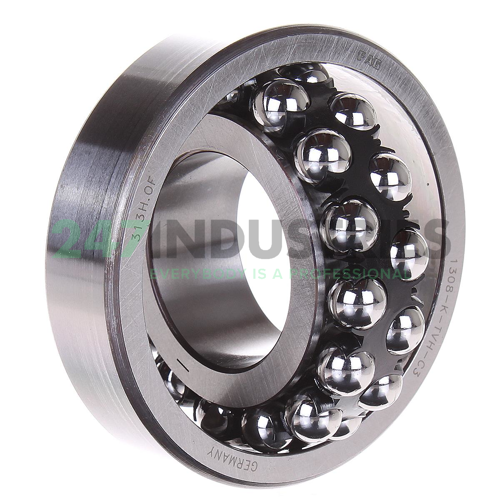

1308-K-TVH-C3 FAG

All dimensions

1. Inner (d) MM 40
2. Outer (D) MM 90
3. Width (B) MM 23
4. Inner (d) Inch 1.5748
5. Outer (D) Inch 3.5433
6. Width (B) Inch 0.9055
7. Width (b) mm 23

Suffix description

1. K Tapered Bore, Taper 1:12
2. TVH Solid Cage Made From Glass Fibre Reinforced Polyamide 66
3. C3 Internal Clearance Larger Than Normal

Technical details

1. Availability 15 pcs
2. Brand FAG
3. Item number 1308-K-TVH-C3 FAG
4. Also known as 0389035550030
   3002265780030

5. EAN 4012801159364
6. Category Self Aligning Ball Bearing Double Row

Weight and Dimensions

1. Weight (kg) 0.704

Product Properties

1. Bore K - 1:12 Tapered Bore (Standard for Most Types)
2. Seal No Seal
3. Cage Type P - Plastic Molded Cage
4. Radial Internal Play C3 Internal Play (Higher than Cn)
5. Precision Standard Precision
6. Lubrication Standard Lubrication
7. Heat Stabilization No Heat Stabilization - Temperatures up to 120 °C

Data from Schaeffler (medias)

1. Radial Static Load Rating C0r (N) 9700
2. Radial Dynamic Load Rating Cr (N) 30000
3. Basic static load rating, radial (C 0r) "9700.0000"
4. Limiting speed (n G) 8600
5. Reference speed (n ϑr) 7200
6. ECLASS number 23-05-08-06
7. ECLASS2 number 23-05-08-06
8. Medias description Self-aligning ball bearing 13..-K-TVH
